6490642318
Alt: 649.0642.318, MAK-4236-BCD-3
$129.47

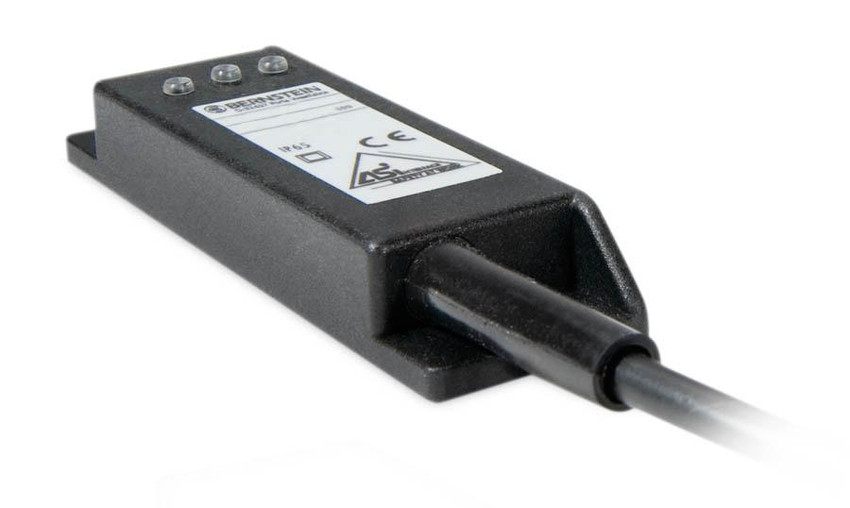

Magnetic Switch Non-Contact, Part of Safety System Can Be Used w/Safety Evaluation Unit (MUZ Series)
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Assured Operating Distance: 4 mm
- Switching Element Function: N.O., N.C. combined
- Max. Voltage: 170 V DC / 120 V AC
- Max. Switch Current: 400 mA DC / 280 mA AC
- Max. Switching Capacity: 0.25 VA
- Max. Release Point: 17 mm
- Operating Frequency: 1 Hz
- Ambient Temperature (min/max): -5°C/+70°C
- Protection Class: IP67
- Enclosure: PA6, black; encapsulated reed contact
- Termination Type: Cable 4 x AWG26 x 3 m; PVC - Outer jacket, black
