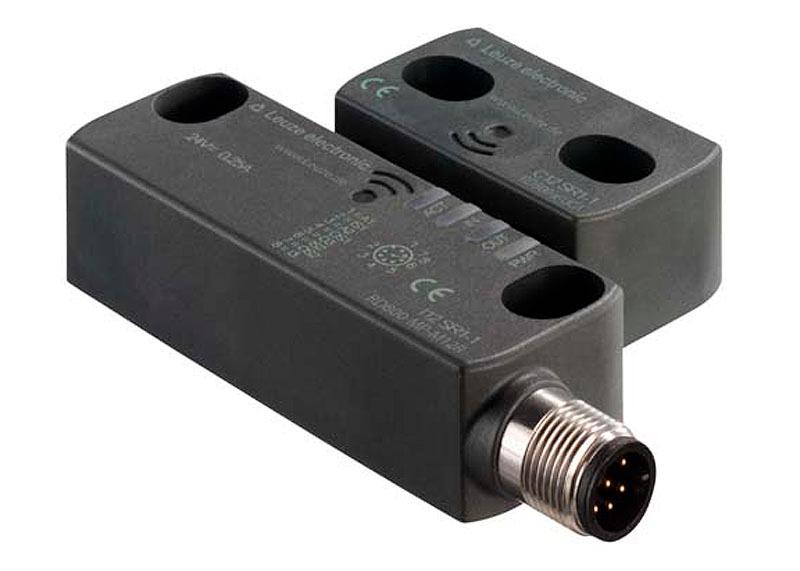

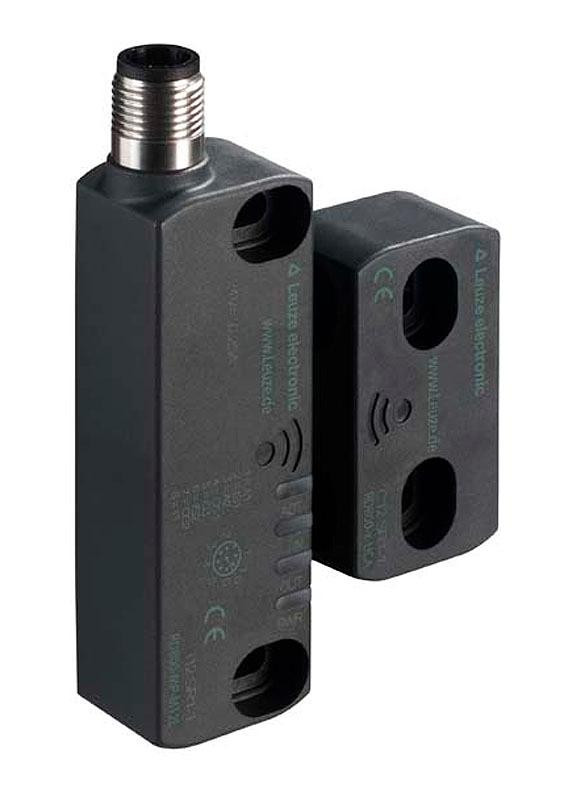

63002010

Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!



Leuze has an extensive range of sensors including measuring, safety, identifications and switching.



Their U.S. Headquarters is located in Duluth, Georgia.

Features Include:

• Supply Voltage: 24 VDC, -15 - 10%
• Current Consumption, max.: 250 mA
• Power Consumption, max.: 1 W
• Nominal Current, min.: 0.5 mA
• Rated Insulation Voltage: 32 VDC
• Conventional Thermal Current, max.: 0.25 A
• Dimension (W x H x L): 25 mm x 18 mm x 72 mm
• Type of Fastening: Through-hole mounting

Need More Information?

• Leuze RD800x Safety Transponder Application Information
• Leuze Safety Switches Brochure
