Product image is representative only, please verify specifications.
6161100554
Alt: 616.1100.554, F1-U1Z AT
$290.09

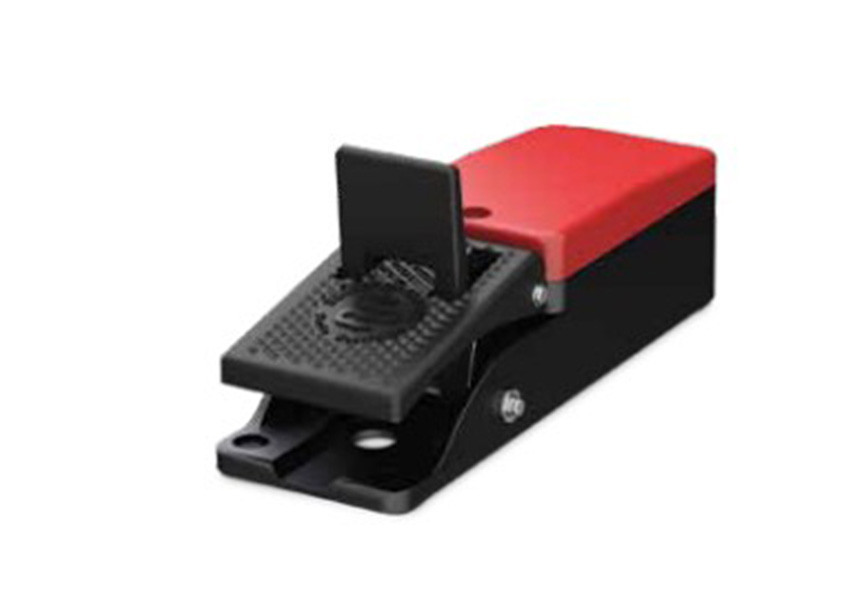

Foot Switch, Single Pedal
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

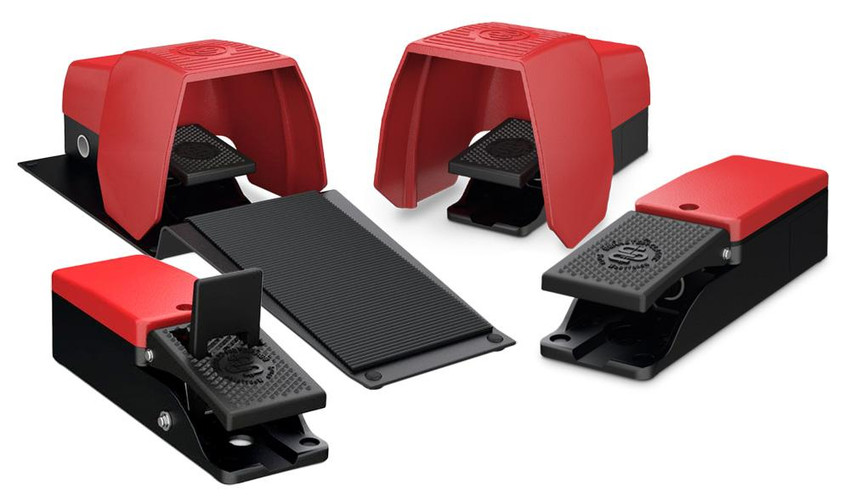

Series Features Include:
- Available un-guarded, or with protective shroud (UN)
- Snap action and Slow action contacts
- Protection Class - IP 65, IP 67 option available
- Pressure point up to 460N available
- Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT), potentiometer (Mi RG) and other additional functions
- Foot switch enclosure - Cast aluminum
- Foot switch cover, Protective Shroud - Cast aluminum
- Foot switch pedal - Thermoplastic
- Cable Entry - M20 x 1.5
- B10d = up to 20 Mio
- Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
