Product image is representative only, please verify specifications.
608.3000.242
Alt: I81-U1Z SM, This is the Recommended Replacement for 6186103005, 6186153466 or 6186803155
$50.63

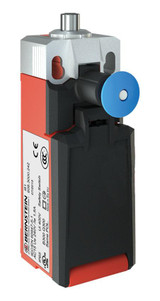

Limit Switch, Latching Style, 1NC/1NO, Slow Action
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Operational Voltage: 240 V AC / 24 V DC
- Rated Supply Frequency AC: 50/60 Hz
- Conv. Thermal Current: 5 A
- Rated Conditional Short-Circuit Current: 400 A
- Minimum Current: 1 mA
- Enclosure: Thermoplastic, glass fiber reinforced (UL 94-V0)
- Actuator: Plunger (steel, nickel)
- Connection: 4 screw connections (M3)
- Integrated latch function: After actuation manually reset by pulling the blue button necessary
- Modular design
- High reliability at low currents (1 mA)
- Tool-free turning and changing of actuator elements
- Metal actuator locking
- Metal mounting clip
- Protection class IP66 and IP67
- Hinged snap-on cover
- Slow-action and snap-action contacts
- Mechanical service life: 100.000 switching cycles
