Product image is representative only, please verify specifications.
6062610014
Alt: 606.2610.014, F2-U1Z/U1Z UN
$328.56

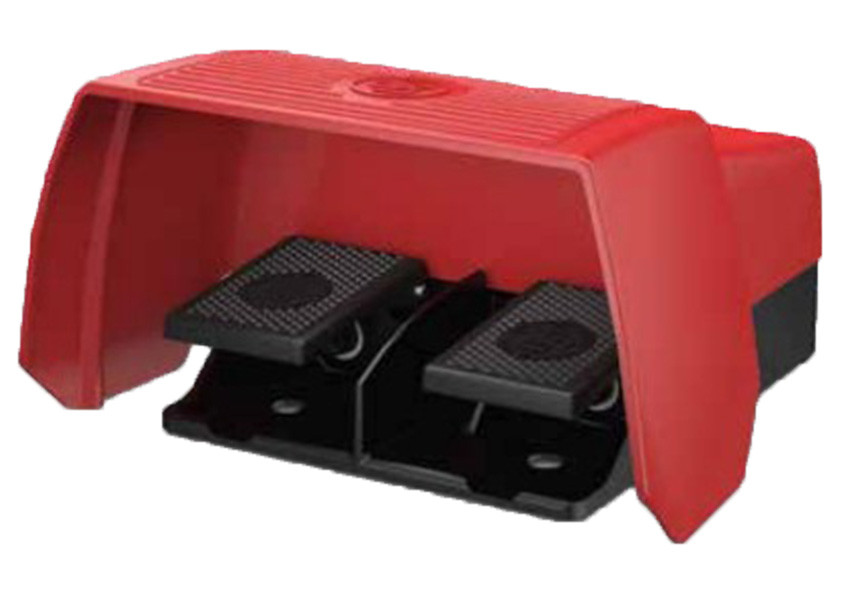

Foot Switch, Double Pedal
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Series Features Include:
- Available un-guarded, or with protective shroud (UN)
- Snap action and Slow action contacts
- IP 67 option available
- Contacts 1NC/1NO 1NC/1NO, 2NC/2NO 2NC/2NO, 1NC/1NO 2NC/2NO, 2NC/2NO 1NC/1NO & SiPf available
- Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT), potentiometer (Mi RG) and other additional functions
- Foot switch enclosure - Cast aluminum
- Foot switch cover, Protective Shroud - Cast aluminum
- Foot switch pedal - Thermoplastic
- Cable Entry - M20 x 1.5
- Protection Class - IP 65
- B10d = up to 20 Mio
- Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
