Product image is representative only, please verify specifications.
6061700004
Alt: 606.1700.004, F1-U2Z UN
$218.46

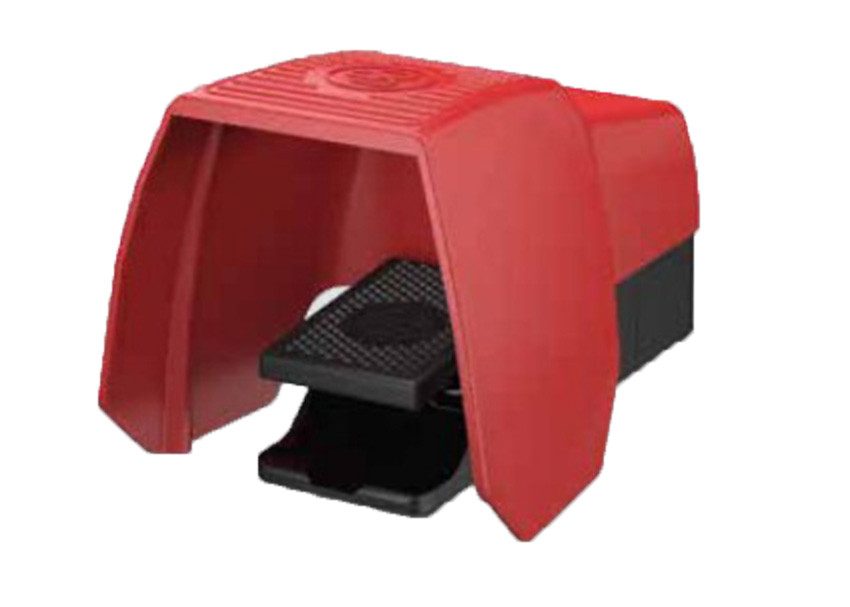

Foot Switch, Single Pedal
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!

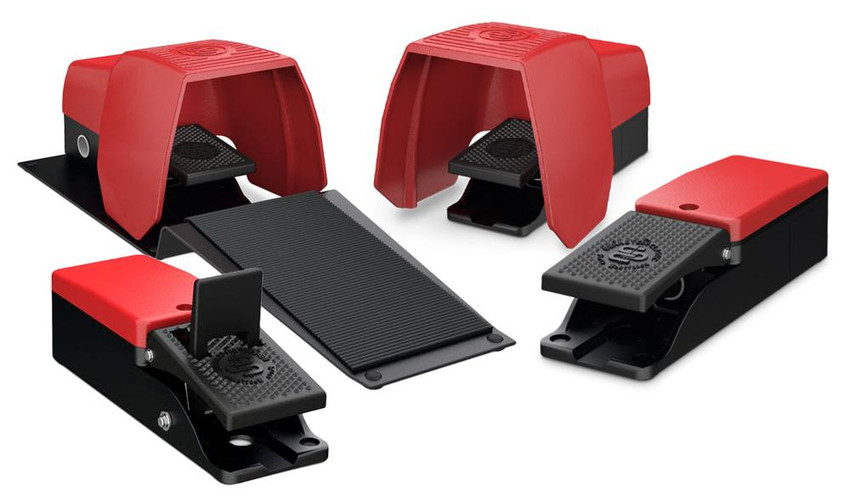

Series Features Include:
- Available un-guarded, or with protective shroud (UN)
- Snap action and Slow action contacts
- Protection Class - IP 65, IP 67 option available
- Contacts 1NC / 1NO, 2NC / 2NO & SiPf available
- Pressure point up to 460N available
- Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT), potentiometer (Mi RG) and other additional functions
- Foot switch enclosure - Cast aluminum
- Foot switch cover, Protective Shroud - Cast aluminum
- Foot switch pedal - Thermoplastic
- Cable Entry - M20 x 1.5
- B10d = up to 20 Mio
- Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
