6018169050
Alt: 601.8169.050, SLK-F-UC-25-R1-A0-L0-0
$406.04

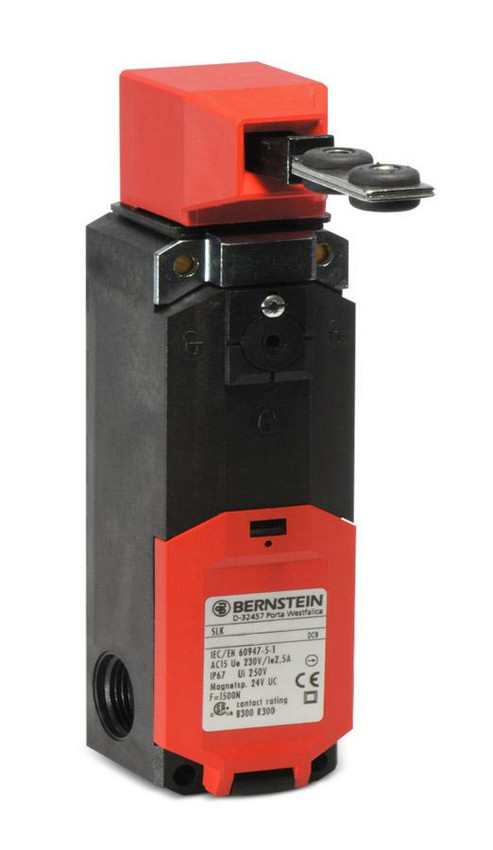

Safety Switch, Solenoid Locking, Plastic Body
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rotary actuating head (4x 90°) as well as horizontal and vertical actuation ensure complete flexibility in use
- Compact design with short overall size of only 170 mm
- Innovative installation with spring-loaded terminals
- Interlock facility is integrated in the switch enclosure
- Locking principle: Spring force (closed-circuit current), Magnetic force (working current)
- Anti-tamper facility due to triple coding
- Protection class IP 67
- Two independent safety circuits ensure reliable integration: With two contacts, circuit 1 monitors the actuator, With two contacts, circuit 2 monitors the interlock
- Two different operating voltages for universal integration: 24 V AC / DC or 110 V / 230 V AC
- Function conforming to GS ET 19, EN 60 204-1, EN 60 947-1 and EN 60 947-5-1
- Cable entry 3 x M20 x 1.5
