6015736003
Alt: 601.5736.003, SI2-U2Z AW R-RAST
$1,325.10

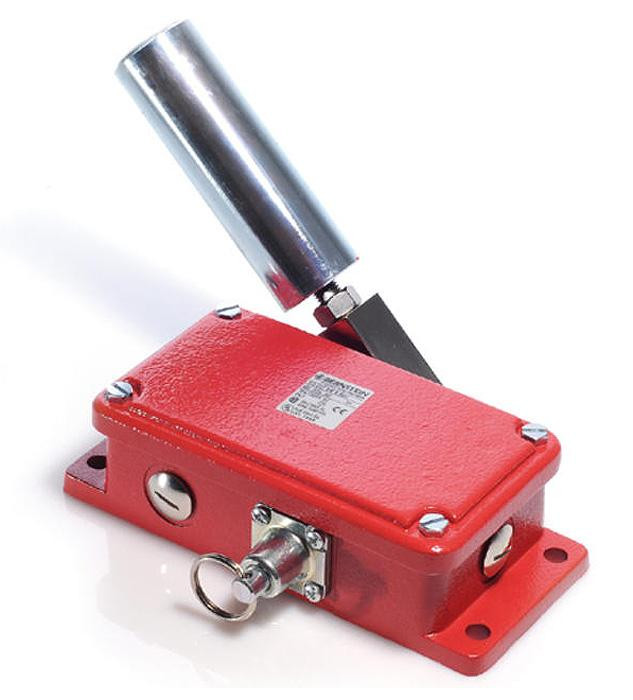

Double Sided Cable Pull Switch
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Series Features Include:
- Enclosure and Cover material: Gray iron
- Zinc die-cast pull ring
- 2 x M20 x 1.5 cable entries
- Conforms to VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
- Protection class IP 65 according to IEC/EN 60529
- B10d = up to 2 Mio
- Slow action contact as standard with snap action available on request
- 1NC / 1NO, 2NC / 2NO contacts available (see Downloads for Key)
- Overlapping contacts also available
- Variety of switch body and actuators available to suit most applications
- Rope kits available with 4mm wire cord produced to your application length
