601.2929.088
Alt: 6012929088, SRM-U1Z/U1Z-QF-300E
$424.41

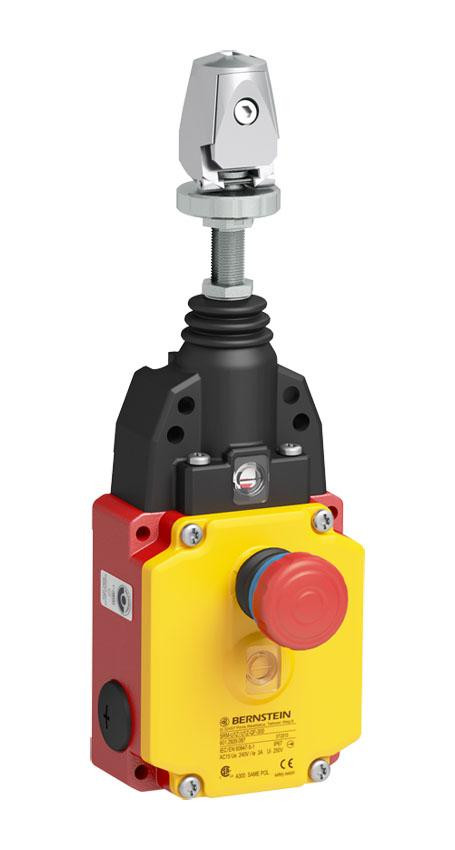

Rope Pull Switch, 2NC/2NO, Max. Span 246' (75m), Quick-Fix QF, Slack Rope Warning
- Weight:
- 2.11 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated Insulation Voltage: 250 V AC
- Conv. Thermal Current: 10 A
- Rated Operational Voltage: 240 V
- Rated Operational Current: 50 mA
- Short-Circuit Protective Device: Fuse 6 A gG
- Enclosure: Aluminum pressure die-casting
- Cover: Aluminum die-casting
- Actuator: Quick clamping device with integrated turnbuckle (Zn-die cast)
- Cable entry: 3x M20 x 1.5
- Contact Type: 2 NC, 2 NO (Zb) (2 built-in switches S1+S2)
- Connection: 8 screw terminals (M3,5)
- Protection Class: IP 67 according to IEC/EN 60529
- Up to four positively driven NC contacts
- Separate-action built-in switches
- Max. span length: 75 meters
- Protection class
- Ambient temperature -30°C to +80°C
