601.2929.085
Alt: 6012929085, SRM-U1Z/U1Z-QF-175
$354.51

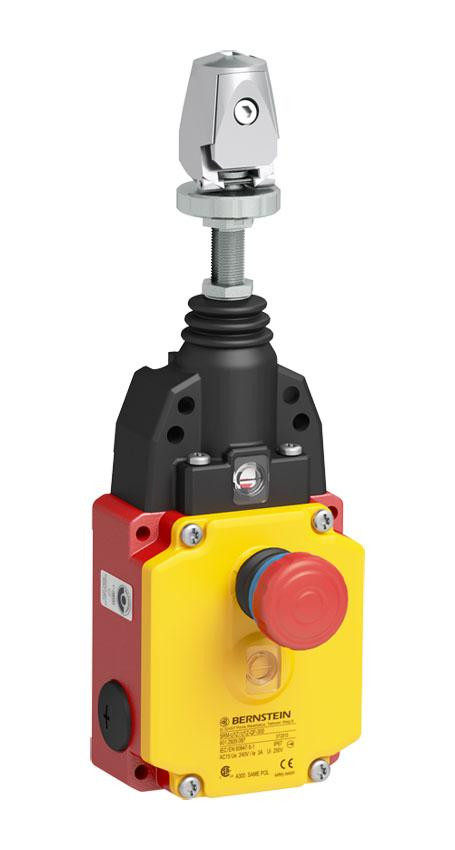

Rope Pull Switch, 2NC/2NO, Max. Span 124' (37.5m), Quick-Fix QF
- Weight:
- 2.12 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Insulation Voltage: 250 V AC
- Conv. Thermal Current: 10 A
- Rated Operational Voltage: 240 V
- Short-Circuit Protective Device: Fuse 6 A gG
- Enclosure: Aluminum pressure die-casting
- Cover: Aluminum die-casting
- Cable entry: 3x M20 x 1.5
- Contact Type: 2 NC, 2 NO (Zb) (2 built-in switches S1+S2)
- Connection: 8 screw terminals (M3.5)
- Protection Class: IP 67 according to IEC/EN 60529
- Up to four positively driven NC contacts
- Separate-action built-in switches
- Max. span length: 75 meters
- Protection class
- Ambient temperature -30°C to +80°C
