Product image is representative only, please verify specifications.
6008351002
Alt: 600.8351.002, C2-SU1Z
$32.26

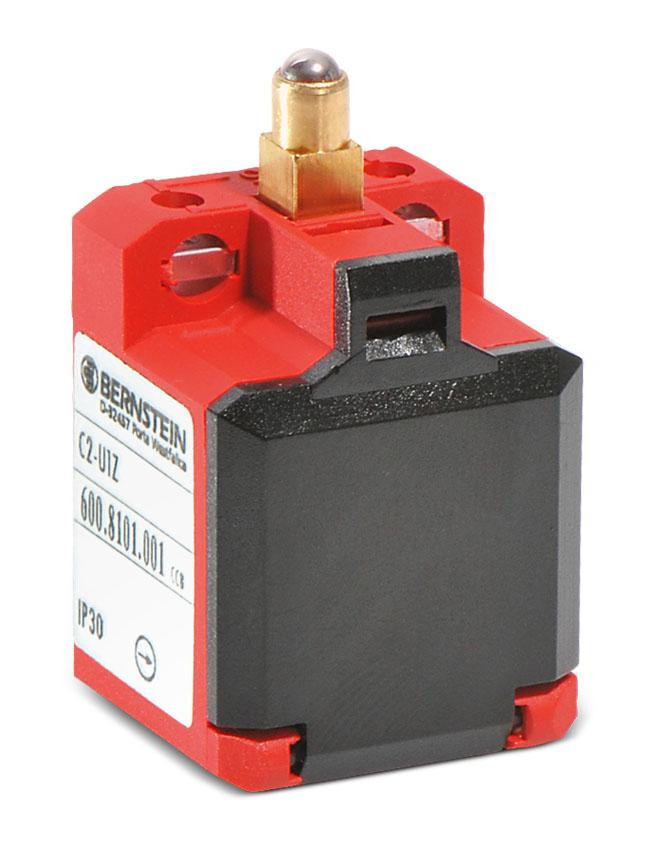

Limit Switch, Enclosed, Plastic Body
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated Insulation Voltage: 250 VAC
- Conventional Thermal Current: 10 A
- Rated Operational Voltage: 240 V
- Short-Circuit Protective Device: Fuse 6 A gG
- Enclosure: Thermoplastic, glass fiber reinforced (UL 94-V0)
- Actuator: Adjusting screw adjustable, thread M3 with a lock nut
- Contact Type: 1 NC, 1 NO (Zb)
- Assembly: 2 x M3
- Connection: 4 screw connections (M3,5)
- Cable entrance: Rectangle 8,5 x 3,5 mm
- Protection Type: IP20 acc. to EN 60529; DIN VDE 0470 T1, IP30 will be reached when all contacts are connected with outer wire diameter ≥ 2,2 mm
- Small switch body ideal for position monitoring in where space is critical
- Snap on cover for easy access during installation and maintenance
- 2 channel safety monitoring position possible
Technical Information:
