8040019084
Alt: NC400-6-RP 24V
$97.00

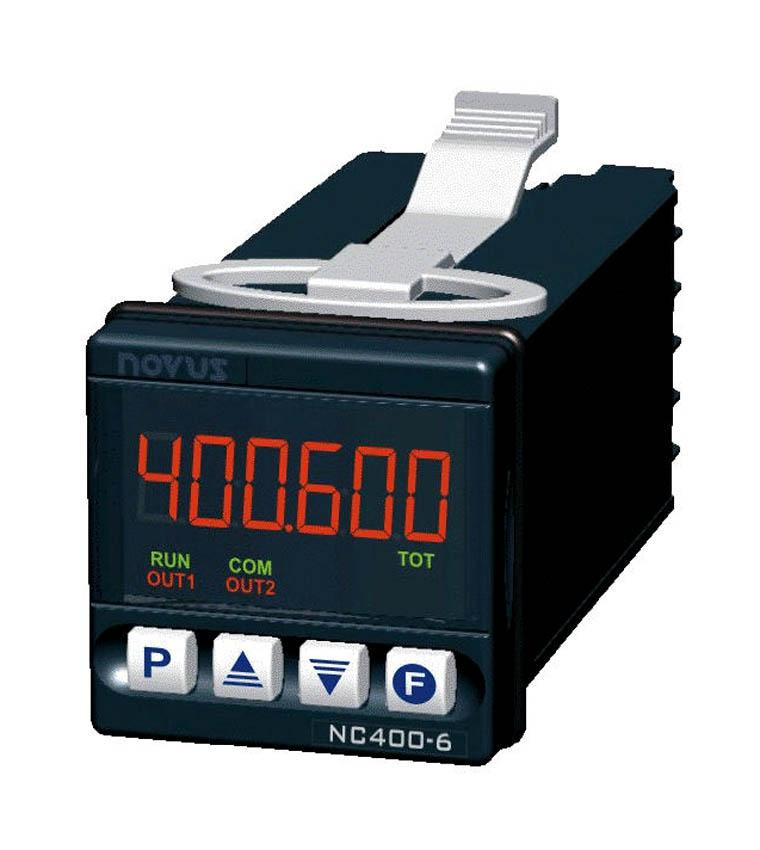

6-Digit Counter, 1 Relay + Pulse Out, 48 x 48mm, Batch & Totalizer Counting, SPST, 12-24VAC/DC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
6-Digit Counter 1 Relay+Pulse Out 48x48 mm Timers, Weekly Timers & Counters
Features Include:
- 6-digit red display 12 mm-high
- Max. counting frequency: 20 kHz, 4 kHz or 55 Hz, depending on the counting mode selected
- Scaling factor: Configurable from 0,00001 to 9,99999
- Relay outputs: SPST 1.5 A @ 240 Vac
- Pulse output: 5 Vdc. Output impedance 100 Ohms
- Outputs triggering timing: 0,01 to 9999,99 s
- Auxiliary voltage source: 12 Vdc (± 10 %) / 50 mA.
- Consumption: 9 VA max
- Battery: Lithium CR2032.Typical battery life: 8-months.
- Operating environment: 5 to 50 °C, 30 to 80% RH
- Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 x 45.5 mm
- Front panel: Polycarbonate UL94 V-2, IP65
- Case: ABS+PC UL94 V-0, IP20
- Weight: 130 g (basic), 150 g with 2 alarm relays
- Rated CE and UL
Power supply:
- 100 to 240 Vac/dc (±10 %), 50/60 Hz;
- Optional 24 V: 12 to 24 Vdc / 24 Vac (-10 % / 20 %)
Counting inputs, hold and reset, Low level: < 2 Vdc
- High level: > 3 Vdc
- Input impedance: 4700 Ohms
- Maximum input voltage: ± 30 Vdc
- Dry-contact input polarization: 5V / 4700 Ohms
