Available Now! 8040019080
Available Now! (1 in stock)

8040019080

Alt: NC400-6-RP

$98.00

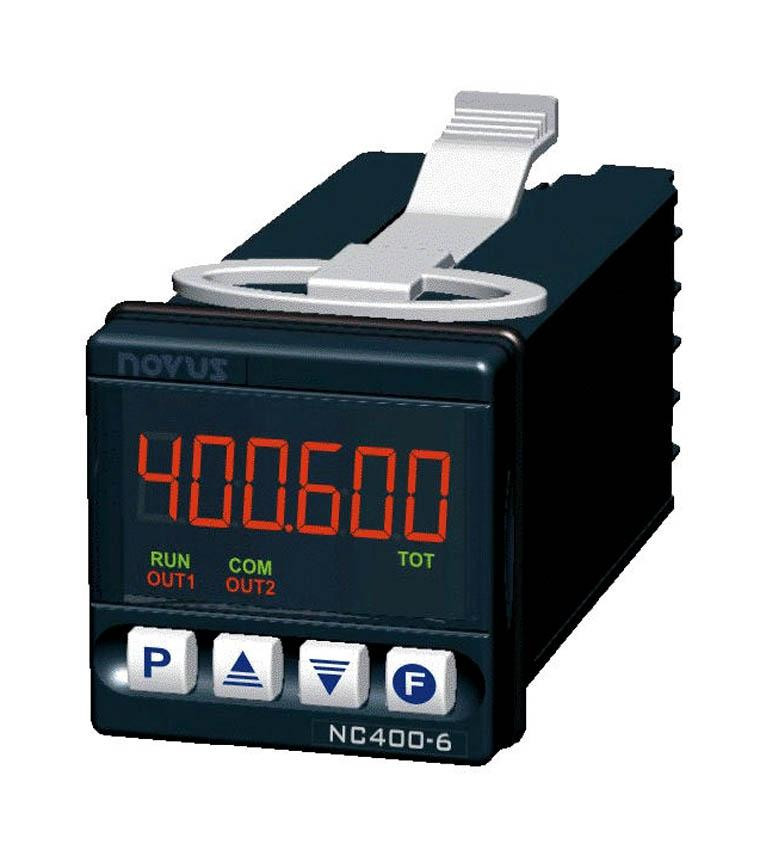

6-Digit Counter, 1 Relay + Pulse Out, 48x48mm, Batch & Totalizer Counting, SPST, 100-240VAC/DC

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Performs both batch and totalizer counting operations!
Description
6-Digit Counter 1 Relay+Pulse Out 48x48 mm Timers, Weekly Timers & Counters

Features Include:

  • 6-digit red display 12 mm-high
  • Max. counting frequency: 20 kHz, 4 kHz or 55 Hz, depending on the counting mode selected
  • Scaling factor: Configurable from 0,00001 to 9,99999
  • Relay outputs: SPST 1.5 A @ 240 Vac
  • Pulse output: 5 Vdc. Output impedance 100 Ohms
  • Outputs triggering timing: 0,01 to 9999,99 s
  • Auxiliary voltage source: 12 Vdc (± 10 %) / 50 mA.
  • Consumption: 9 VA max
  • Battery: Lithium CR2032.Typical battery life: 8-months.
  • Operating environment: 5 to 50 °C, 30 to 80% RH
  • Dimensions: 48 x 48 x 110 mm. Panel cutout: 45.5 x 45.5 mm
  • Front panel: Polycarbonate UL94 V-2, IP65
  • Case: ABS+PC UL94 V-0, IP20
  • Weight: 130 g (basic), 150 g with 2 alarm relays
  • Rated CE and UL

Power supply:

  • 100 to 240 Vac/dc (±10 %), 50/60 Hz;
  • Optional 24 V: 12 to 24 Vdc / 24 Vac (-10 % / 20 %)

Counting inputs, hold and reset, Low level: < 2 Vdc

  • High level: > 3 Vdc
  • Input impedance: 4700 Ohms
  • Maximum input voltage: ± 30 Vdc
  • Dry-contact input polarization: 5V / 4700 Ohms
