Alt: AC Speed Control, Enclosed, NEMA 1, Replaced 55AC15-21
$191.20
(You save)
AC Speed Control, Enclosed, NEMA 1, 120VAC Input Voltage/0-120VAC Output, Single Phase, 1.5hp, 15A, 2' Cord and Plug Supply Connection, Receptacle Output Connection, Can Be Used to Adjust Single Phase AC Motor Speed (Will Not Work with Capa

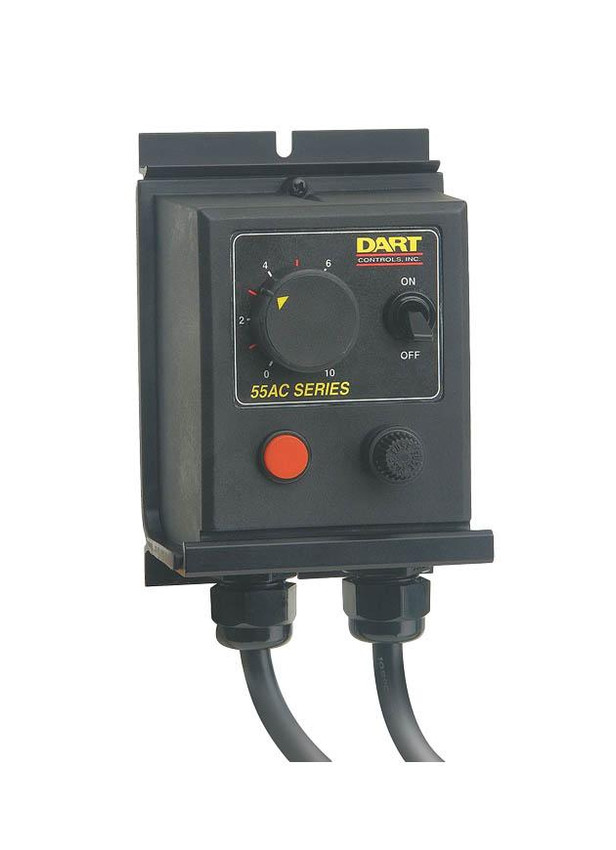

The 55/57 series are cost-effective and compact triac variable AC voltage supplies that are manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries.
All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs.
The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load. It is not designed for capacitor start motors.
It also can be used with heating elements as a simple temperature control. Open chassis models include speed pot knob and dial.
The 55/57 Series AC Motor Speed control is a triac based single phase variable voltage supply. It is used primarily with single phase AC motors and universal motors that ARE NOT CAPACITOR START designs.
55AC10E- Enclosed, NEMA 1, 120V, 10 Amp, 1hp
55AC15E- Enclosed, NEMA 1, 120V, 15 Amp, 1.5hp
57AC10E- Enclosed, NEMA 1, 240V, 10 Amp, 2hp
57AC15E- Enclosed, NEMA 1, 240V, 15 Amp, 2.5hp
Change E to C on any of the above for the chassis versions
Features Include:
Variable AC voltage supply
55AC10C is the chassis version (no enclosure)
55AC10E is the enclosed version and comes with rugged housing, power on/off switch, power on indicator lamp, front access fuse and convenient input/output cords and plugs
All models feature single phase AC input and fully variable AC output
Temperature ...-10° to +45° C.
AC Input Voltage ...±10% Rated Line Voltage
Input Frequency ... 50/60 Hz.
Designed to work with shaded pole, permanent split capacitor, permanent split-phase, universal motors or any resistive load
Great for fan, pump, heating, lighting and vibratory feeder industries
Please note: this series is not designed for capacitor start motors
