53800114
Alt: RSL420-XL, All Around Scanner, Standard Tasks, Non-Cancellable / No Returns
Safety Laser Scanner, 0-8.25m Operating Range, 24VDC, Great All Around Scanner for Standard Tasks, NCNR
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit

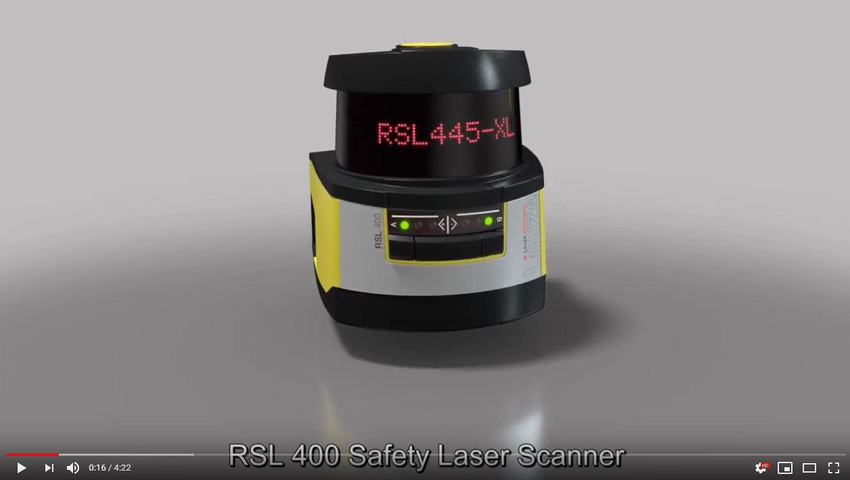

Leuze RSL400 safety laser scanners can be used for danger zone or access guarding in both stationary and mobile applications!
Thanks to its high operating range of 8.25 m and a scanning angle of 270°, it can monitor even large areas. The series also includes models for integration via PROFIsafe/PROFINET interface and models with data output for the navigation of automated guided vehicles
- Operating ranges of 3 m to 8.25 m and various function variants offer tailor‑made solutions for your applications
- High-quality measurement data output with a resolution of 0.1° delivers the data needed for reliable AGV navigation
- Simple integration into industrial networks by using variants with PROFIsafe / PROFINET interface
- Removable connection unit, integrated display and integrated level
With the RSL 400, the entire transmitting/receiving system rotates creating an especially narrow and uniform laser spot over the entire scanning range. This provides the devices with a high angular resolution of 0.1°, making them very adept at filtering objects that are not safety-relevant, such as dust and particles in the air.
With the 270° scanning angle and operating range of up to 8.25 m, the RSL 400 can safeguarding even large areas with just one device. The 2-in-1 solution makes the devices even more efficient: by means of 2 independent protective functions, each with its own safety output, the RSL 400 performs the tasks of two devices.
The connection unit of the RSL 400 is removable and can be mounted separately. The scanning head thus remains protected and can simply be attached afterwards.
Fast device exchange: It takes less than 30 seconds to swap out the scanner: turn two screws by 90° and replace the scanner head. Without realignment, readjusting and configuration effort, as the configuration memory is integrated in the connection unit
Applications include:
- Guarding hazardous areas
- Reestart protection and monitoring of hidden areas
- Guarding and navigation of AGVs (automated guided vehicles)
- Access guarding using sensors outside of working range
Marshall Wolf Automation is your authorized Leuze distributor! We have been family and women owned since 1984.
Features Include:
- Supply Voltage: 24V DC, -30 - +20%
- Power Consumption, max.: 17 W, For 24 V, plus output load
- Scanning Angle: 270°
- Minimum Adjustable Range: 50 mm
- Operating Range: 0-8.25 m
- Object Size: 150 mm x 150 mm
- Light Source: Infrared Laser
- Laser Light Wavelength: 905 nm
- Repetition Frequency: 90 kHz
- Detection Range: 0-50 m

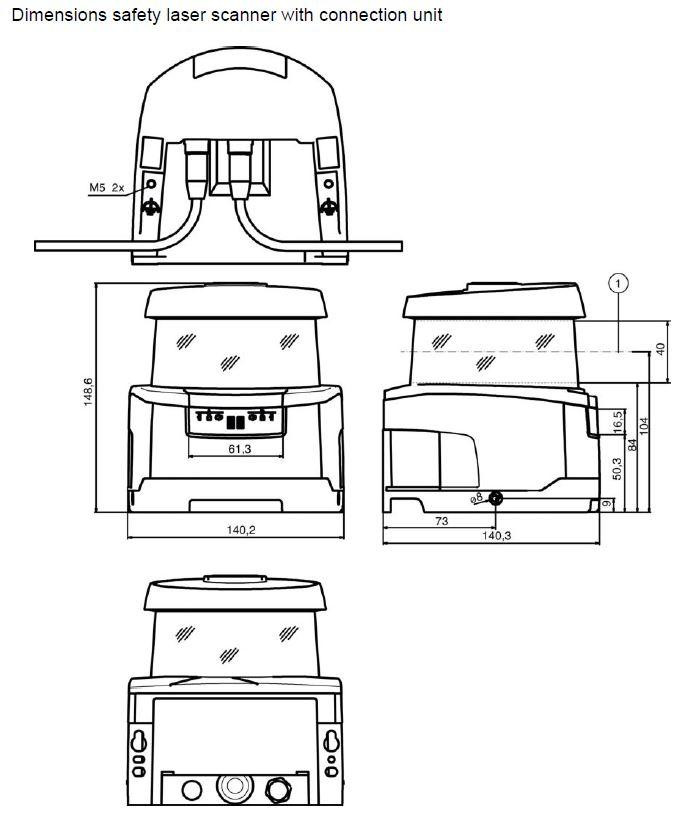

- Dimensions (W x H x L): 140 mm x 149 mm x 140 mm
- Housing Material: Metal, Diecast zinc, Plastic
- Fastening Type: Mounting plate, Through-hole mounting, Via optional mounting device
