50142870
Alt: IGSU14E/LWT.3-M12, This Item is the Suggested Replacement for 50126784, Non-Cancellable / No Returns
$831.00

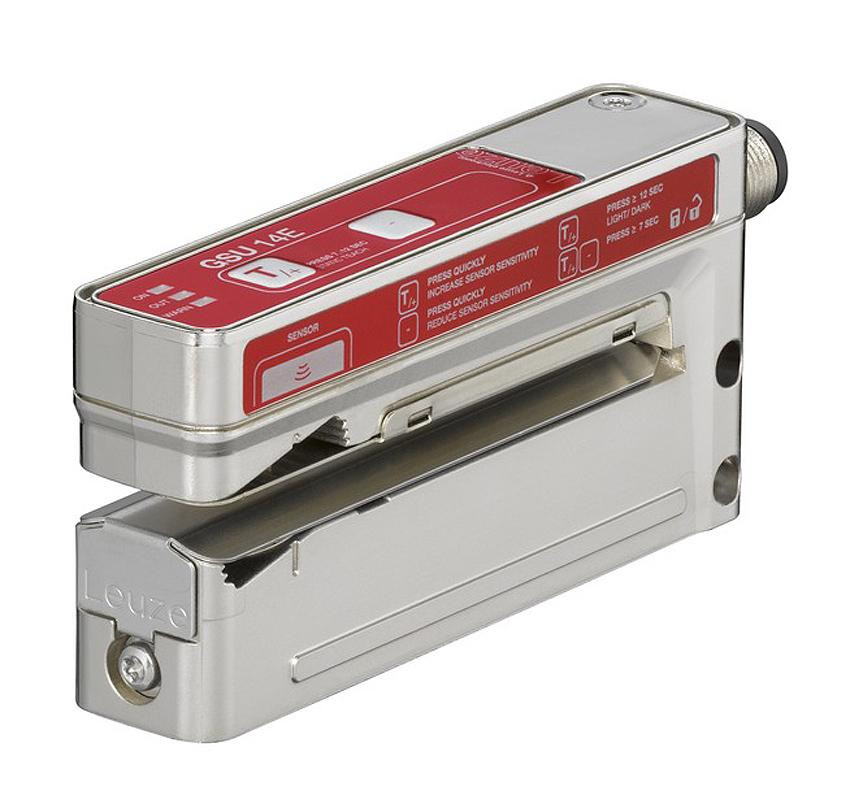

Ultrasonic Fork Sensor, NCNR
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!
Leuze has an extensive range of sensors including measuring, safety, identifications and switching.
Their U.S. Headquarters is located in Duluth, Georgia.
Features Include:
- Principle of physics: Ultrasonics
- Application: Detection of non-transparent labels, Detection of transparent labels
- Label width, min.: 4 mm
- Label gap, min.: 2 mm
- Medium: Transparent and not transparent
- Supply voltage UB: 18 - 30 V, DC
- Residual ripple: 0 - 10 %, From UB
- Open-circuit current: 0 - 60 mA, Typical value
- Switching current, max.: 100 mA
- Mouth width: 4 mm
Mouth depth: 80 mm - Dimension (W x H x L): 22 mm x 46.9 mm x 96 mm
- Housing material: Metal
- Metal housing: Diecast zinc, galvanic nickel coating
- Type of fastening: Through-hole mounting, Mounting thread
