50134464

Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!



Leuze has an extensive range of sensors including measuring, safety, identifications and switching.



Their U.S. Headquarters is located in Duluth, Georgia.

Features Include:

• Operating principle: Diffuse reflection principle with background suppression
• Supply voltage UB: 10 - 30 V, DC, Incl. residual ripple
• Open-circuit current: 0 - 20 mA
• Black-white error: < 10% up to 1200 mm
• Operating range, white 90%: 0.005 - 3 m
• Operating range, gray 18%: 0.02 - 2 m
• Operating range, black 6%: 0.05 - 1.5 m
• Operating range limit: 0.005 - 3 m
• Adjustment range: 120 - 3,000 mm
• Light source: LED, Infrared
• Switching output 1: Switching element: Transistor, PNP - Switching principle: Light switching
• Switching output 2: Switching element: Transistor, PNP - Switching principle: Dark switching
• Function: Voltage supply, Signal OUT
• Type of connection: Terminal
• No. of pins: 5 -pin
• Dimension (W x H x L): 31 mm x 104 mm x 55.5 mm
• Housing material: Plastic
• Plastic housing: PC
• Lens cover material: Plastic

Technical Information:

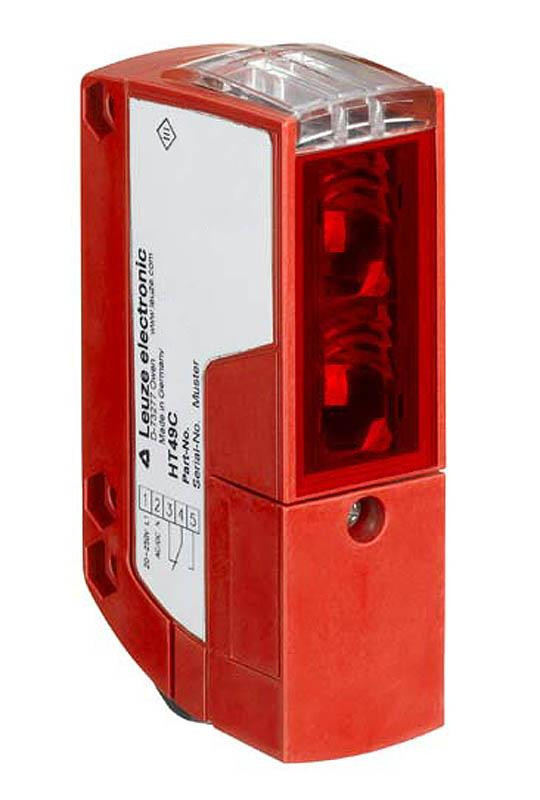

• Leuze HT49CI/4P-TB Diffuse Sensor with Background Suppression Datasheet
• Leuze HT49CI/4P-TB Diffuse Sensor with Background Suppression Operating Instructions
