.5012EP3ESS56CFL
Alt: 14418911
$571.52

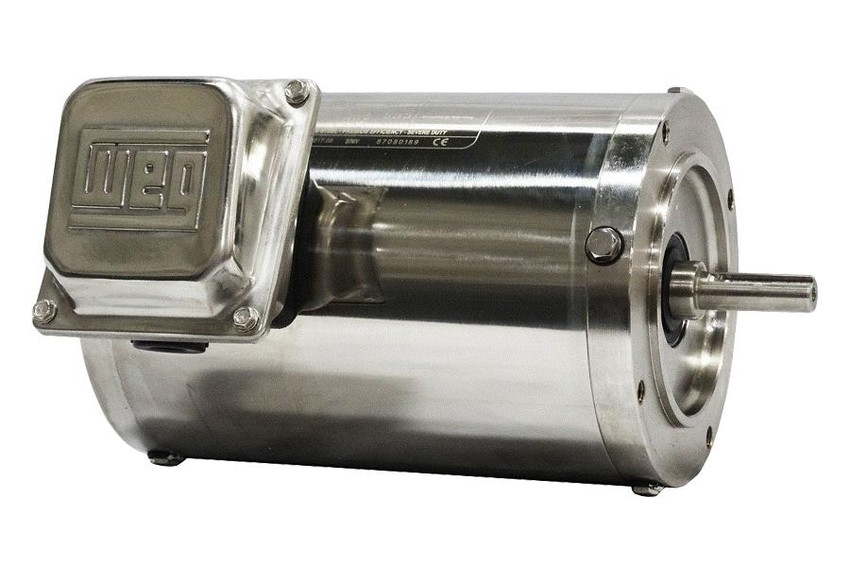

Motor, 0.5hp, 1200rpm, 6-Pole, TENV, 56C, Footless/C Flange, 3 Phase, 230/460VAC, 60Hz, Shark Stainless Steel High Efficiency, Washdown Duty, Terminal Box F-1 Left Position, IP56
- Weight:
- 45.10 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Specifications
Alternate Part Number
14418911
Frame
56C
Horsepower
5 hp
Mounting
Footless, C Face
Motor Type
TENV, WashDown
Phase
Three Phase
All - Specific Ratings
IP56
RPM
1200
Series
Shark Series
All - Voltage
230/460VAC
Warranty
2 Years
Weight
45.1
Features Include:
- Degree of Protection: IP56
- Mounting: F-1
- Flange: C
- Frame Material: Stainless Steel
- Frequency: 60 Hz
- Output rating: 0.5 HP
- Enclosure: TENV
- Motor Application: Shark
- Frame: 56C
- Voltage: 230/460V
- Synchronous speed: 1200 rpm
