460-220-60

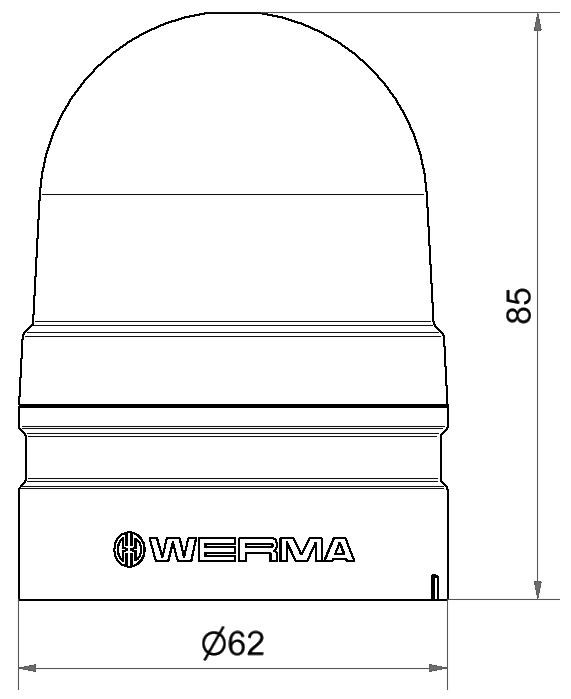

The EvoSIGNAL MINI is a 62mm beacon that is 85mm tall and ideal for distances 0 to 20 meters.

All EvoSIGNAL products are IP66/NEMA 4X and suitable for indoor/outdoor applications. Please note that a mounting adpater is required, please see the accessories tab.

The EvoSIGNAL MINI:

• Available in optical (260), optical audible (460) or audible (160)
• 12, 24 or 115/230V versions
• Tricolor version available in 24V (260-430-75)
• Choose from steady/flashing (TwinLIGHT) or in a flashing/strobe model (TwinFLASH)

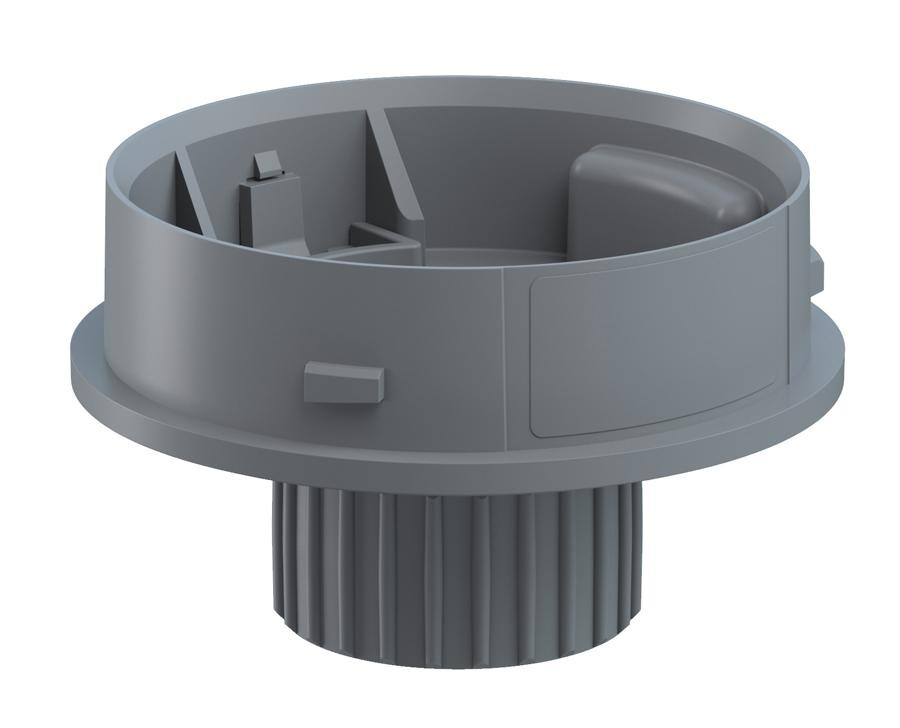

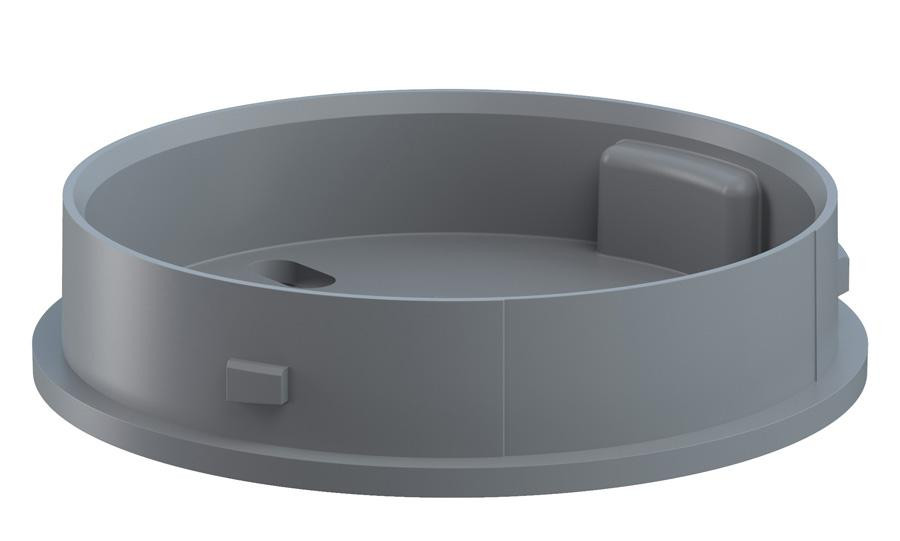

• Required mounting adapters include base mount, pole mount or bracket mount
• Ideal for indoor or outdoor applications with limited space!
• This series will replace all 532 part numbers from the following series:
  • 127, 128, 200/203, 201/204, 206, 207, 209, 210/213, 211/214, 216, 219, 221/224, 222/225, 800, 801, 802, 815, 816, 817, 420/422, 421/423, 424, 425, 482, 582

Werma's EvoSIGNAL streamlines their beacon offering with 62mm (MINI), 85mm (MIDI) and 120mm (MAXI) diamters available in a range of optical, audible and optical audible options.

• TwinLIGHT gives you the option of a continuous/steady light or flashing light
• TwinFLASH gives you the option of a flashing light or strobe light
• TriCOLOUR is green/red/yellow – you can trigger 3 color via only two outputs from the machine control output

Features Include:

• Operating Voltage: 115-230V AC
• Operating Voltage Type: 50Hz at 230V, 60Hz at 115V +/-10%
• Rated Operational Voltage: 230 VAC
• Rated Operational Current: 60 mA
• Rated Inrush Current: 2000 mA
• Materials: PC, PC/ABS
• Connection: Push-In Terminal
• Diameter: 62 mm
