Carlo Gavazzi

RGC3A60D65GGEDF

Alt: 3P-SSC-DC IN-ZC 600V 3X65A 120

$487.90

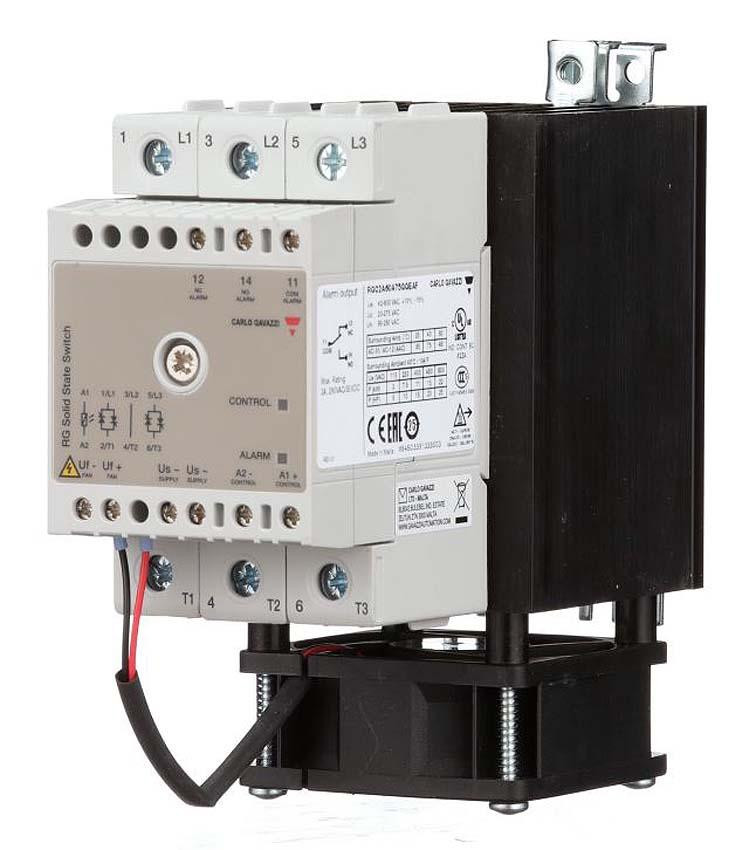

SSR, Three Phase, Integrated Heatsink, 3 Pole Switching, Zero Cross, 42-660VAC, 1200Vp, 5-32VDC Controll Voltage, 65A, Box Clamp

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
RGC3A60D65GGEDF
RGC3A60D65GGEDF
RGC3A60D65GGEDF
RGC3A60D65GGEDF
RGC3A60D65GGEDF
RGC3A60D65GGEDF
Description

Features Include:

  • Rated operational current per pole @ 40°C: 40 AAC (6600 A2s)
  • Rated Voltage: 600 VAC
  • Control voltage: 5 - 32 VDC
  • External supply, Us: 24 VDC, 90 - 250 VAC
  • Product Width: 54 mm + fan
  • Mounting: DIN rail (RGC3..48: Panel mount)
  • Material: PA66 (UL94 V0), RAL7035 850°C, 750°C/2s according to GWIT and GWFI requirements of EN 60335-1
  • Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
  • 3-phase zero cross switching solid state contactor for 2-pole switching
  • Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
  • Optionally integrated monitoring for SSR and load malfunction with alarm output for remote signaling with the RGC..M
