Carlo Gavazzi's RGC2/RGC3 series are 3-phase solid state relays with an integrated heatsink.
This series is meant to replace mechanical contactors, especially when switching is frequent.
Apart from resistive and slightly inductive loads, the RGC is certified for motor switching with associated motor ratings. A green LED gives indication of control voltage presence. Fan operation is controlled for the versions which have an integrated fan.
Features Include:
Rated operational current per pole @ 40°C: 65 AAC (15000 A2s)
Rated Voltage: 600 VAC
Control voltage: 20-275 VAC
External supply, Us: 90 - 250 VAC

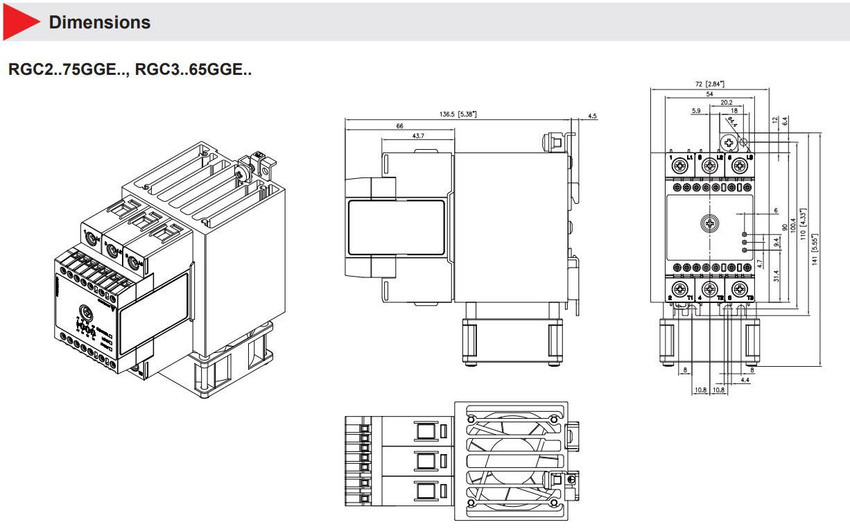

Product Width: 70mm +fan
Mounting: DIN rail
Material: PA66 (UL94 V0), RAL7035 850°C, 750°C/2s according to GWIT and GWFI requirements of EN 60335-1
Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
3-phase zero cross switching solid state contactor for 2-pole switching
Optionally integrated monitoring for SSR and load malfunction with alarm output for remote signaling with the RGC..M
