Product image is representative only, please verify specifications.
3906030721

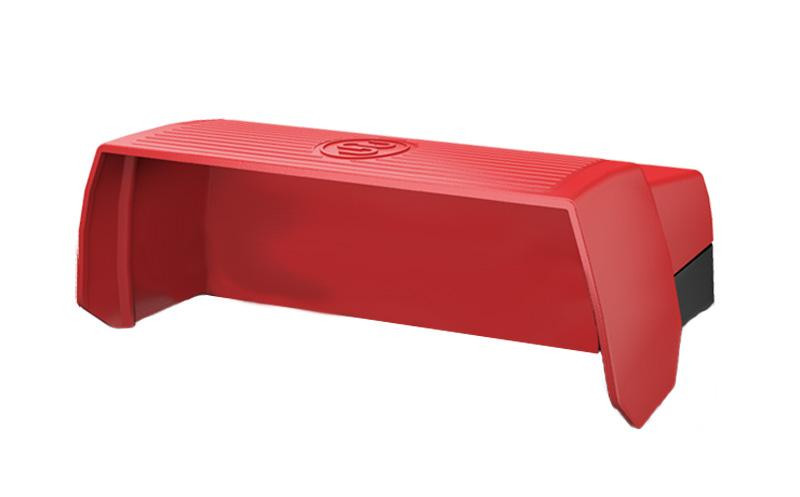

Alt: 390.6030.721, F3-UN-COVER M.FKZ KPL. E
$682.27
Foot Switch
- Minimum Purchase:
- 1 unit
Description
Series Features Include:

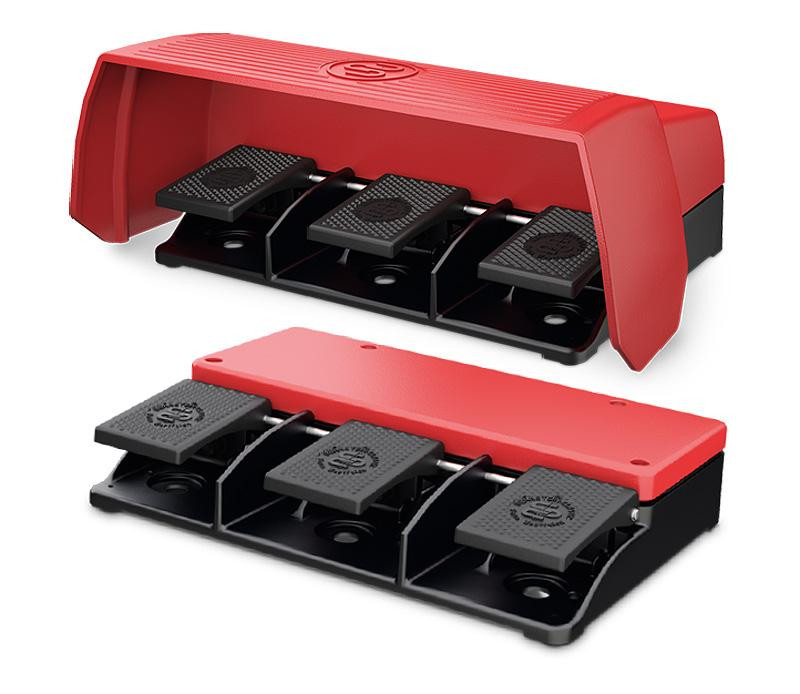

- Available un-guarded, or with protective shroud (UN)
- Snap action and Slow action contacts
- Contacts 1NC/1NO 1NC/1NO 1NC/1NO, 2NC/2NO 2NC/2NO 2NC/2NO available
- Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT) and other additional functions
- Foot switch enclosure: Cast aluminum
- Foot switch cover: Cast aluminum
- Foot switch pedal: Thermoplastic
- Cable Entry - M20 x 1.5
- Protection Class - IP 65
- B10d = up to 20 Mio
- Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1
- Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
