314850
Alt: LA28-LAS-F1-7675, Replacement for 134122
$454.81
Sensor, Thru-Beam, Pair Consists of: LA28-LAS-F1-7675 (Emitter) & LK28-LAS-F1-Z-7675 (Receiver), 120m Detection Range, Red Light, Light/Dark On, 88mmH x 25.8mmW x 65.5mmD, IP67, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Effective detection range: 0 - 120 m
- Threshold detection range: 150 m
- Light source: laser diode
- Light type: modulated visible red light
- Alignment aid: LED red (in receiver lens) illuminated constantly: beam is interrupted, flashes: reaching switching point, off: sufficient stability control
- Diameter of the light spot: Approx. 20 mm at 5 m, approx. 75 mm x 300 mm at 70 m horizontal in relation to the housing axis
- Opening angle: Emitter: 0.23°, Receiver: 5 °
- Switching type: light/dark on, switchable . (selectable, light/dark switching is only activated if the receiver has 'dark on' selected.)
- Signal output: Relay, 1 alternator
- Switching voltage max.: 250 V AC/DC
- Switching current max.: 2 A

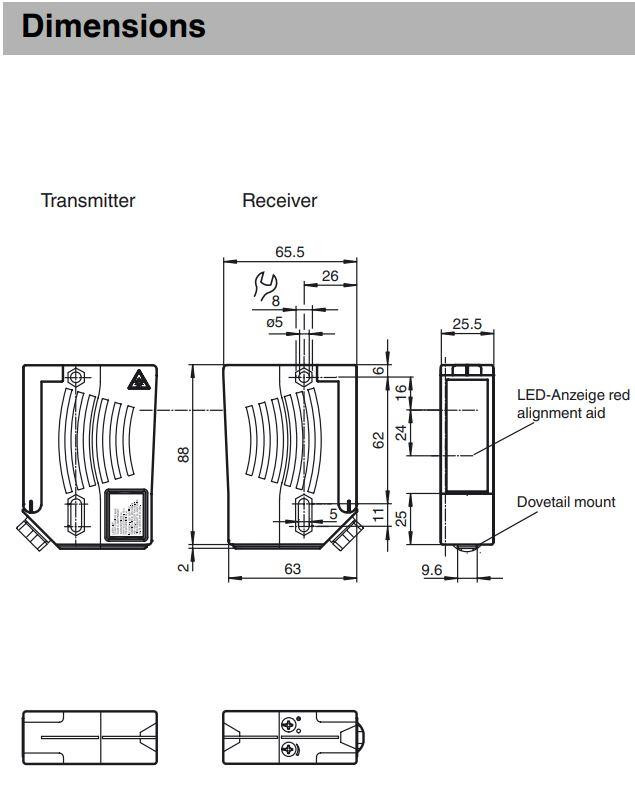

- Housing width: 25.8 mm
- Housing height: 88 mm
- Housing depth: 65.5 mm
- Degree of protection: IP67
- Connection: terminal compartment with 8 spring-loaded terminals for wire cross section 0.5 - 1.5 mm2, Insulation stripping 7.5 - 8.5 mm , M16 x 1.5 cable gland
- Housing: Plastic ABS
- Optical face: Plastic pane
