3009C2.
Hammond Power

3009C2.

$4,476.67

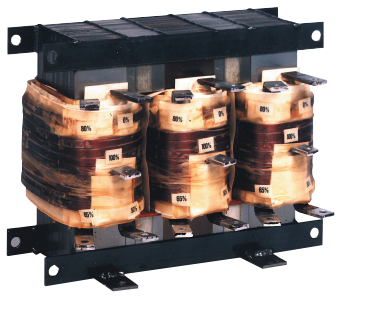

Motor Starting Autotransformer, 200hp, 480V, 60Hz, Copper Wound, 3 Phase, 3 Coil, 220°C, Medium Duty Service, Mechanical Lugs, CSA, UL Approval, Core & Coil Encl.: 10.75 x 15 x 10.5" (274 x 381 x 267mm) (HWD), Mounting Width: 9" (229mm), Mo

Weight:
210.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Hammond Power Solutions (HPS) is the largest manufacturer of dry-type transformers in North America!

We are an authorized HPS distributor and have access to the complete line. Currently we offer their general purpose, encapsulated, buck-boost and distribution transformers online, please Contact Us for anything you are unable to find.
Specifications
Phase Three Phase
Primary Voltage 480V
Type of Transformer Motor Starting Autotransformer
VA See Spec or N/A
Warranty 1 Year
Weight 210

Features Include:

  • Standard Design: Three phase using economical open core and coil construction
  • Standard Taps:All units have taps at 50%, 65% and 80%
  • Termination:Heavy solid copper lugs with holes, provide reliable termination
  • Frequency: 60 Hz
  • Thermostats: 1, 2 or 3 optional thermostats are available
  • Dimensions (Width x Depth x Height): 15.00 in (381.00 mm) x 10.5 in (266.70 mm) x 10.75 in (273.05 mm)
