2C30UL
Alt: UL (C-Trip) Series
$49.78

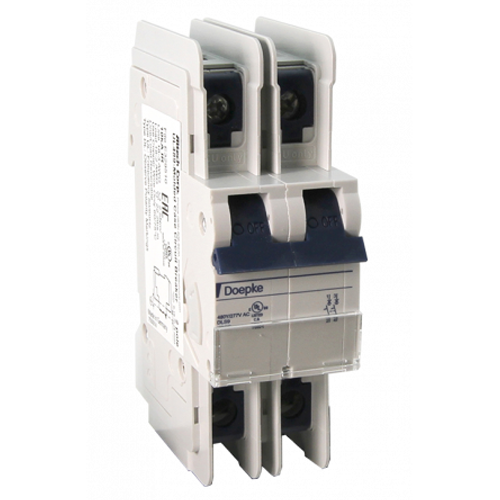

Circuit Breaker, 2-Pole, C-Curve, 30 Amp, UL489480Y/277VAC
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Altech Corporation was founded in 1984 and is a master distributor for a complete line of industrial automation components. Altech has been a long-time partner of ours and consistently brings high quality and unique products to the market.
They are located in Flemington, New Jersey and are ISO 9001:2015 certified.
Series Features Include:
- AC Current/Voltage Rating: 0.3 - 63A/ 240V AC, 0.3-32A/ 480Y/277V AC*
- DC Current/Voltage Rating: 0.3 - 63A/ 250V DC
- Terminal Torque: 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
- Available in AC and DC models
- DIN Rail Mounted
- 17.5mm width
- Thermal Magnetic
- Current Limiting (UL tested)
- 10kA Short Circuit Interrupting Capacity
- HACR Type 40°C
- Line/Load reversible
