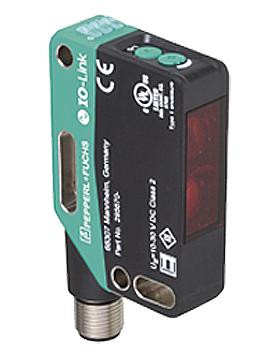

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.

• Both R10x and R20x offer IO-Link, DuraBeam and MPT
• R10x - small housing design
• R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility

DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!

DuraBeam

Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).

This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.

DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.

MPT (Multi Pixel Technology)

MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.

Features Include:

• Medium design with versatile mounting options
• Best background suppressor in its class
• Precision object detection, almost irrespective of the color
• Extended temperature range: -40°C - 60°C
• High degree of protection IP69K
• IO-link interface for service and process data
• Detection range: 10 - 650 mm
• Reference target: Standard white, 100 mm x 100 mm
• Light source: LED
• Light type: modulated visible red light
• LED risk group labelling exempt group
• Black/White difference (6 %/90 %): < 6 % at 650 mm
• Diameter of the light spot approx.: 20 mm x 20 mm at a distance of 650 mm
• Angle of divergence: approx. 2 °
• Operation indicator: LED green: constantly on - power on, flashing (4Hz) - short circuit, flashing with short break (1 Hz) - IO-Link mode
• Function indicator: LED yellow: constantly on - object detected, constantly off - object not detected
• Control elements: Light-on/dark-on changeover switch
• Control elements: Sensing range adjuster
• Operating voltage: 10 - 30 V DC
• No-load supply current: < 25 mA at 24 V supply voltage
• Housing width: 15 mm
• Housing height: 61.7 mm
• Housing depth: 41.7 mm
• Degree of protection: IP67 / IP69 / IP69K
• Connection: 4-pin, M12 x 1 connector, 90° rotatable

Technical Information:

• Pepperl+Fuchs OBT650-R201-2EP-IO-V1 Triangulation sensor (BGS) Datasheet
• Pepperl+Fuchs R10x and R20x Series Sensors Catalog
• Pepperl+Fuchs IO-Link Offline Parameterization Installation/User Instructions
