Pepperl+Fuchs

267075-100523

Name: 267075-100523
Brand: Pepperl+Fuchs
SKU: 267075-100523
Price: 133.83 USD
Availability: InStock

Alt: OBT150-R101-2EP1-IO

$133.83

Photoelectric LED Triangulation Sensor with Background Suppression, Returns of This Item Must Be Approved by Manufacturer

SKU:: 267075-100523
Weight:: 0.10 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.

Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility

DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!

DuraBeam

Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).

This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.

DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.

MPT (Multi Pixel Technology)

MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.

Features Include:

Miniature design with versatile mounting options
Best background suppressor in its class
Precision object detection, almost irrespective of the color
Extended temperature range: -40°C - 60°C
IO-link interface for service and process data
Detection range: 5 - 150 mm
Adjustment range: 25 - 150 mm
Reference target standard: white, 100 mm x 100 mm
Light type: modulated visible red light
LED risk group labelling exempt group
Diameter of the light spot approx.: 10 mm at a distance of 150 mm
Opening angle: approx. 3 °
Operating voltage: 10 - 30 V DC
Ripple max.: 10 %
No-load supply current: < 25 mA at 24 V supply voltage
Output Switching type: The switching type of the sensor is adjustable. The default setting is:
C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link
/Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on
Signal output 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Output Switching voltage max.: 30 V DC
Output Switching current max. 100 mA , resistive load

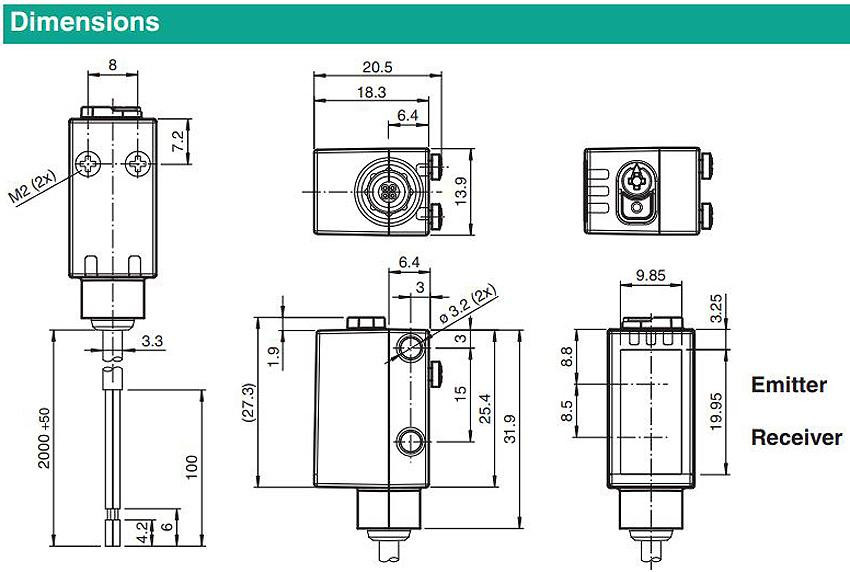

Housing width: 13.9 mm
Housing height: 33.8 mm
Housing depth: 18.3 mm
Degree of protection: IP67 / IP69 / IP69K
Connection: 2 m fixed cable
Material: Housing PC (Polycarbonate), Optical face PMMA

Technical Information:

Learn More About Pepperl+Fuchs Here!

Accessories

Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.

Add Selection to Cart

Pepperl+Fuchs

267075-100275

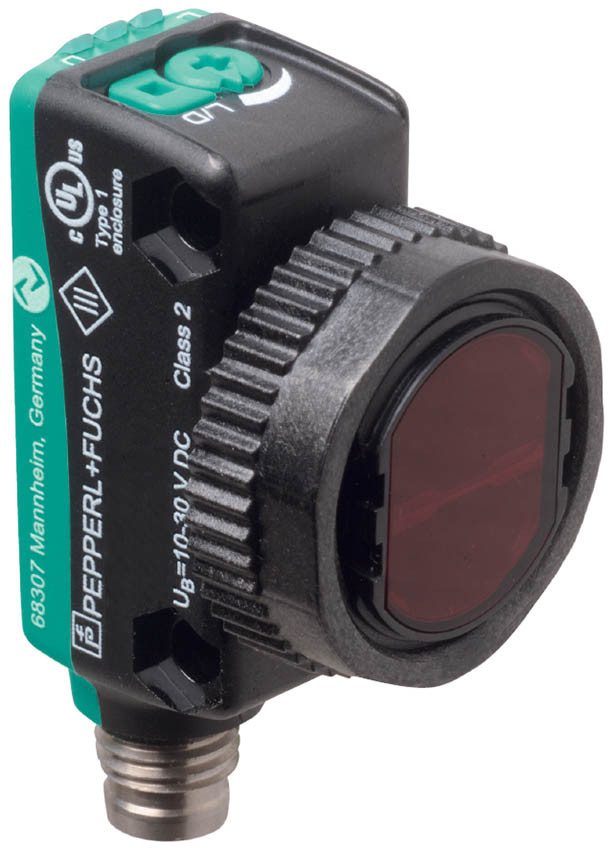

Photoelectric Retroreflective Sensor with Polarization Filter, Miniature Design, 10-30VDC, 0-6m Detection Range, IO Link, M8 4-Pin Connector, 43.9H x 15W x 26.7Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manufacturer

$93.58

Select

Pepperl+Fuchs

267075-100014

Photoelectric Retroreflective Sensor, Polarization Filter, Miniature Design, 10-30VDC, 0-7.5m Detection Range, IO-Link, 0.30m Cable with M12 4-Pin Connector, 33.8H x 139W, 18.3Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manuf

$111.69

Select

Pepperl+Fuchs

267075-100298

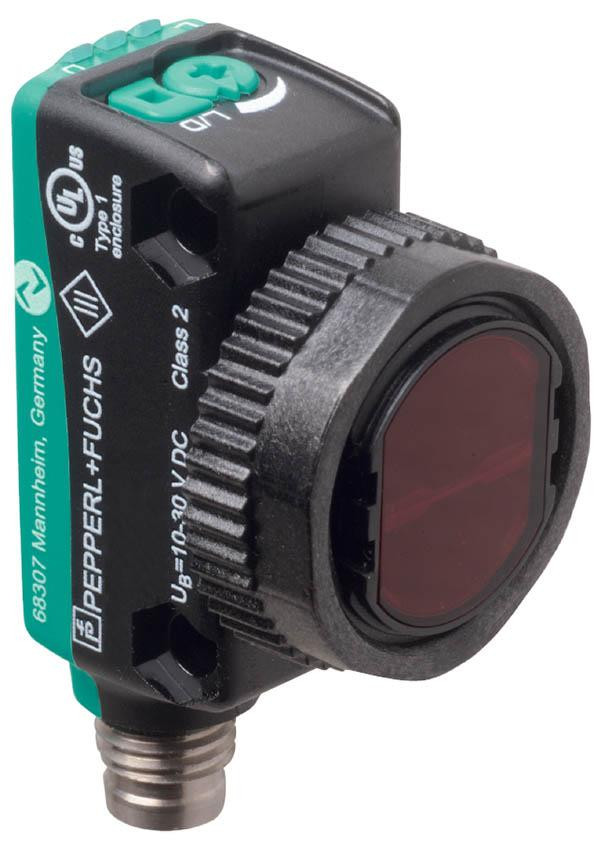

Photoelectric DuraBeam Laser Retroreflective Sensor, 10-30VDC, 0-12m Detection Range, IO Link, M8 4-Pin Connector, 43.9H x 15W x 26.7Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manufacturer
