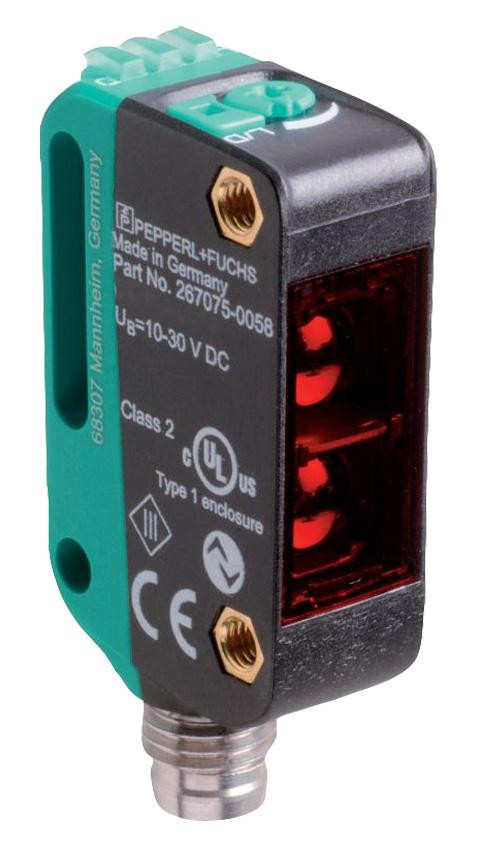

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Features Include:
Detection range: 5 - 150 mm
Adjustment range: 25 - 150 mm
Reference target: Standard white, 100 mm x 100 mm
Light source: LED
Light type: Modulated infrared light 850 nm
Operating voltage: 10 - 30 V DC
No-load supply current: < 25 mA at 24 V supply voltage
Output Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link/Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on
Output Switching voltage max.: 30 V DC
Output Switching current max.: 100 mA , resistive load
Output Switching frequency: 500 Hz

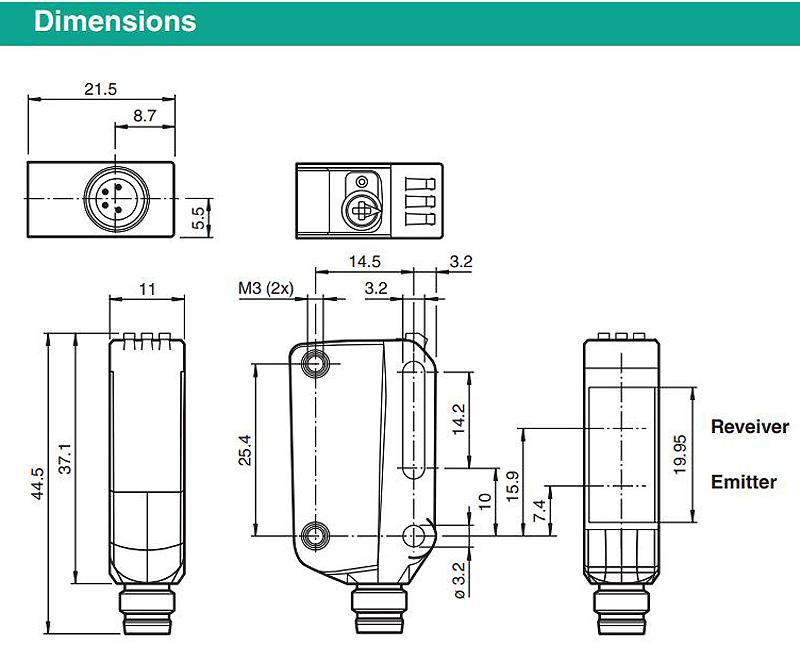

Housing width: 11 mm
Housing height: 44.5 mm
Housing depth: 21.5 mm
Degree of protection: IP67 / IP69 / IP69K
Connection: M8 x 1 connector, 4-pin
Material: Housing PC (Polycarbonate), Optical face PMMA
