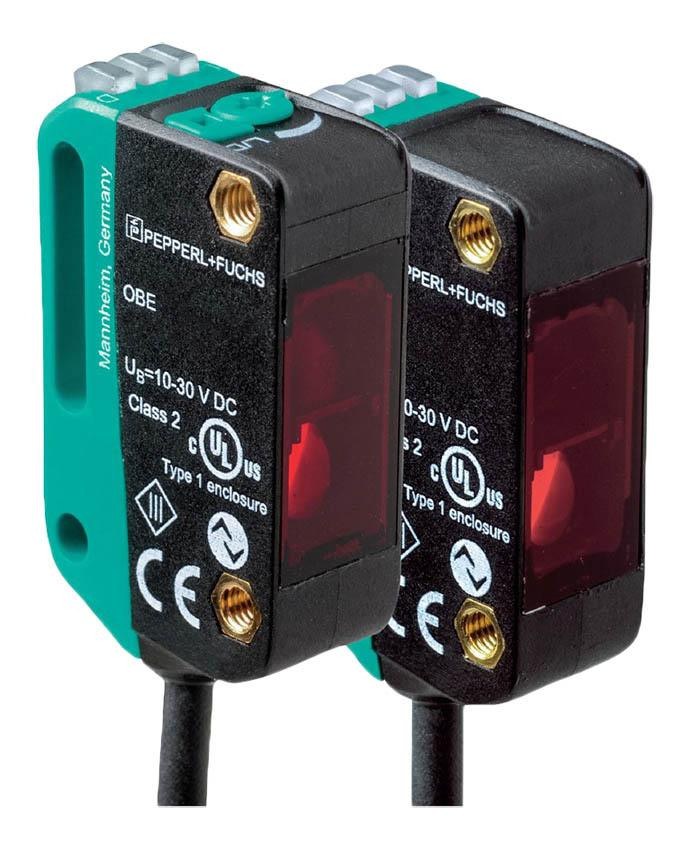

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Features Include:
Operating voltage: 10 - 30 V DC
No-load supply current: Emitter: ≤ 13 mA, Receiver: ≤ 13 mA at 24 V supply voltage
Effective detection range: 0.2 - 20 m
Threshold detection range: 25 m
Light source: LED
Light type: modulated infrared light
Diameter of the light spot: approx. 100 mm at a distance of 1 m
Opening angle: 5.4°
Connection: 2 m fixed cable
Housing width: 11 mm
Housing height: 37.1 mm
Housing depth: 21.5 mm
Housing Material: PC (Polycarbonate)
Optical Face Material: PMMA
Degree of protection: IP67 / IP69 / IP69K
Miniature design with versatile mounting options
IO-Link interface for service and process data
Various frequencies for avoiding mutual interference (cross-talk immunity)
Photoelectric Retroreflective Sensor with Polarization Filter, Miniature Design, 10-30VDC, 0-6m Detection Range, IO Link, M8 4-Pin Connector, 43.9H x 15W x 26.7Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manufacturer
Photoelectric Retroreflective Sensor, Polarization Filter, Miniature Design, 10-30VDC, 0-7.5m Detection Range, IO-Link, 0.30m Cable with M12 4-Pin Connector, 33.8H x 139W, 18.3Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manuf
Photoelectric DuraBeam Laser Retroreflective Sensor, 10-30VDC, 0-12m Detection Range, IO Link, M8 4-Pin Connector, 43.9H x 15W x 26.7Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manufacturer
