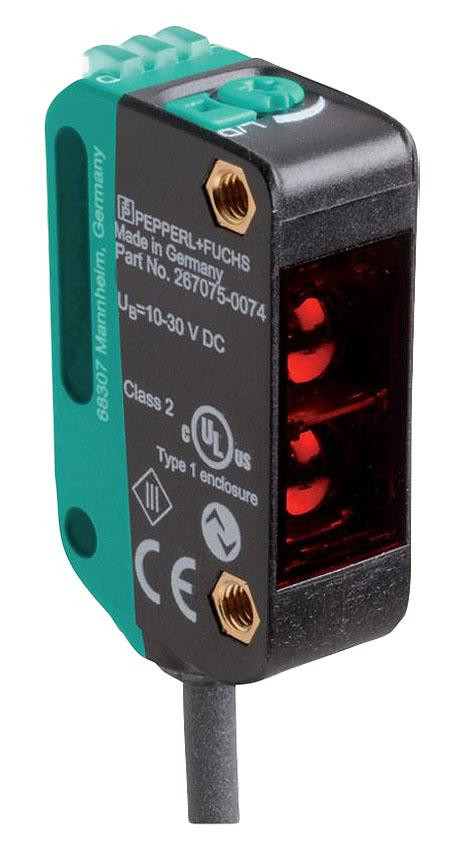

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Features Include:
Operating voltage: 10 - 30 V DC
No-load supply current: < 25 mA at 24 V supply voltage
Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link
Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage: max. 30 V DC
Switching current: max. 100 mA , resistive load
Detection range: 7 - 100 mm
Detection range min.: 7 - 25 mm
Detection range max.: 7 - 100 mm
Adjustment range: 25 - 100 mm
Reference target: standard white, 100 mm x 100 mm
Light source: laser diode
Light type: modulated visible red light
Beam divergence: > 5 mrad d63 < 1 mm in the range of 150 mm ... 250 mm
LED risk group labelling: exempt group
Black/White difference (6 %/90 %): < 5 % at 150 mm
Diameter of the light spot: < 1 mm at a distance of 60 mm
Opening angle: approx. 0.3°
Housing width: 11 mm
Housing height: 37.1 mm
Housing depth: 21.5 mm
Degree of protection: IP67 / IP69 / IP69K
Connection: 300 mm fixed cable with M8 x 1, 3-pin connector
Material: Housing PC (Polycarbonate), Optical face PMMA
