Pepperl+Fuchs
304074
Required for PC sensor Config. via PACTware.Interface includes powersupply and USB cable.
$422.62
267075-100151
Alt: OQT150-R100-2EP-IO-0.3M-V31
$172.06

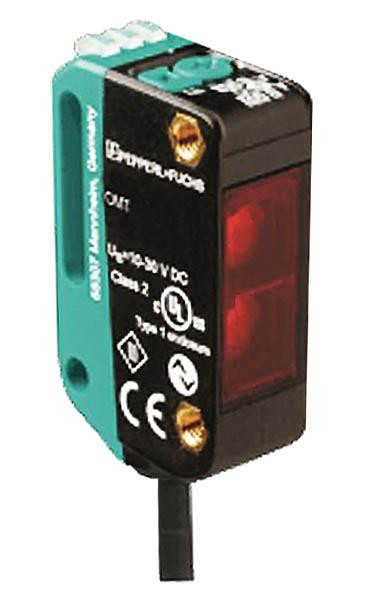

Photoelectric, DC, Measuring, LED, 5 … 150 mm, M8 Quick Disconnect with 300mm Cable, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
- Both R10x and R20x offer IO-Link, DuraBeam and MPT
- R10x - small housing design
- R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Series Features Include:
- Detection range: 5 - 150 mm
- Adjustment range: 20 -150 mm
- Reference target: standard white, 100 mm x 100 mm
- Light source: LED
- Light type: modulated visible red light
- LED risk group labelling: exempt group
- Black/White difference (6 %/90 %): < 5 % at 150 mm
- Diameter of the light spot: approx. 10 mm at a distance of 150 mm
- Angle of divergence: approx. 4 °
- Ambient light limit: EN 60947-5-2 : 30000 Lux
- Operating voltage: 10 - 30 V DC
- Ripple: max. 10 %
- No-load supply current: < 25 mA at 24 V supply voltage
- 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
- Switching voltage: max. 30 V DC
- Switching current: max. 100 mA , resistive load
- Usage category: DC-12 and DC-13
- Voltage drop: ≤ 1.5 V DC
- Switching frequency: 217 Hz
- Response time: 2.3 ms
- Housing width: 11 mm
- Housing height: 37.1 mm
- Housing depth: 21.5 mm
- Degree of protection: IP67 / IP69 / IP69K
- Connection: fixed cable 300 mm with M8 x 1 male connector; 4-pin
Need More Information?
Learn More About Pepperl+Fuchs Here!
