267075-100118

267075-100118

Alt: OBE20M-R100-EP-IO-0.3M-V3-L

$95.59

Photoelectric Thru-Beam Sensor (Receiver), Returns of This Item Must Be Approved by Manufacturer

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.

  • Both R10x and R20x offer IO-Link, DuraBeam and MPT
  • R10x - small housing design
  • R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility

DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!

DuraBeam

Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).

This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.

DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.

MPT (Multi Pixel Technology)

MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.



Features Include:

  • Operating voltage: 10 - 30 V DC
  • Effective detection range: 0 - 20 m
  • Threshold detection range: 30 m
  • Light source: laser diode
  • Light type: modulated visible red light
  • Wave length: 680 nm
  • Beam divergence: > 5 mrad ; d63 < 2 mm in the range of 250 mm ... 750 mm
  • LED risk group labelling: exempt group
  • Diameter of the light spot: approx. 50 mm at a distance of 20 m
  • Opening angle: 0.3°
  • Connection: 300 mm fixed cable with M8 x 1, 3-pin connector

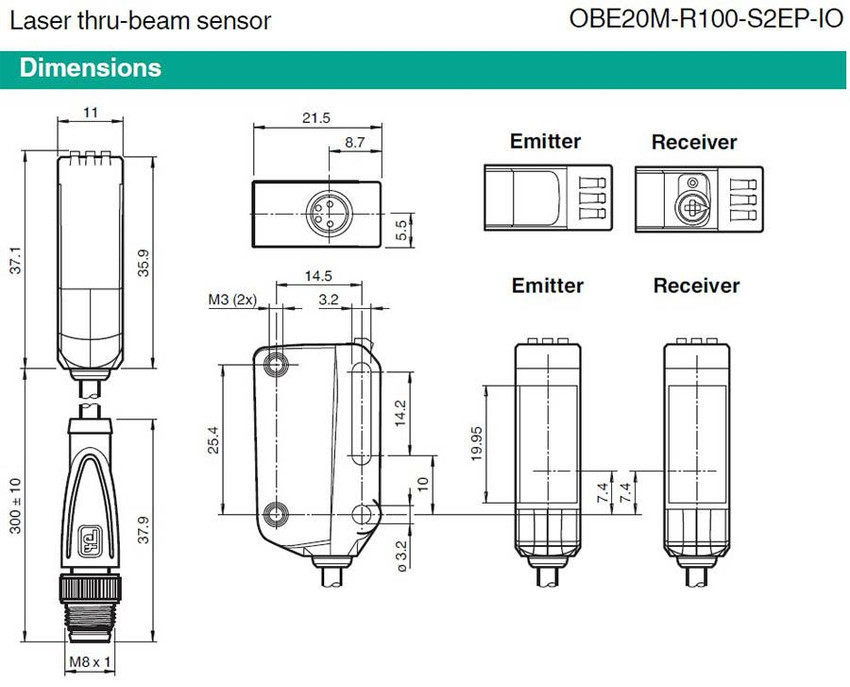

  • Housing width: 11 mm
  • Housing height: 37.1 mm
  • Housing depth: 21.5 mm
  • Housing Material: PC (Polycarbonate)
  • Optical Face Material: PMMA
  • Degree of protection: IP67 / IP69 / IP69K
  • Miniature design with versatile mounting options
  • IO-Link interface for service and process data
  • Various frequencies for avoiding mutual interference (cross-talk immunity)
  • Extended temperature range: -40 °C - 60 °C
