Alt: OBD1000-R100-EP-IO-V3

$93.58

Diffuse Mode Sensor, Returns of This Item Must Be Approved by Manufacturer

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

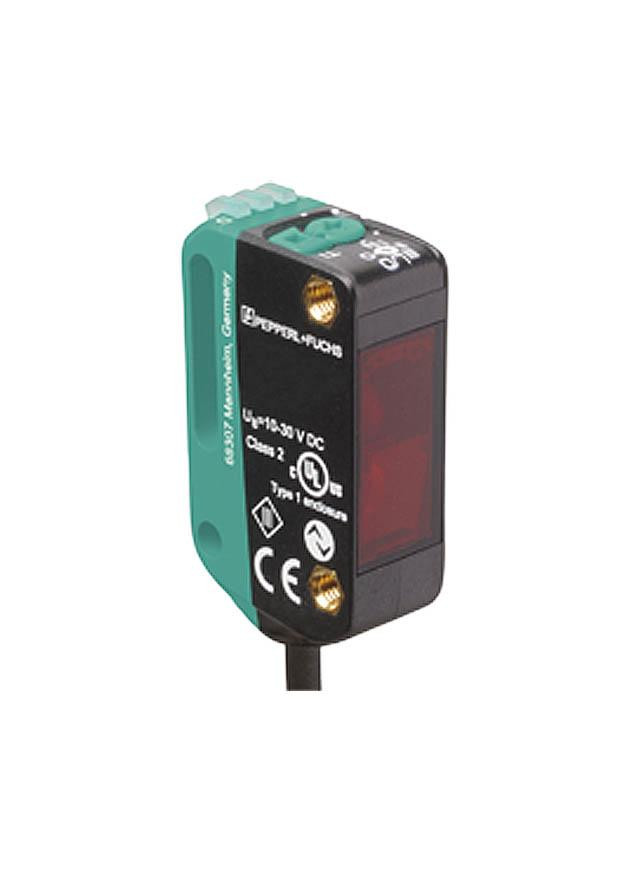

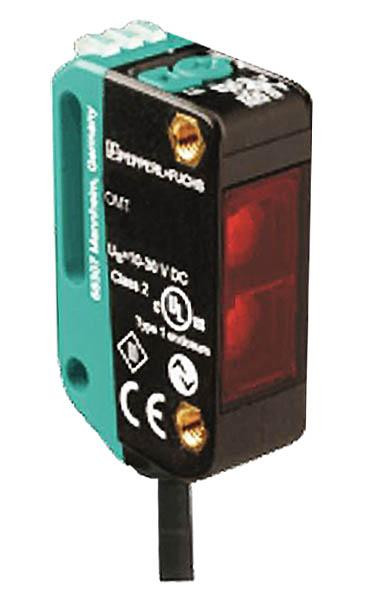

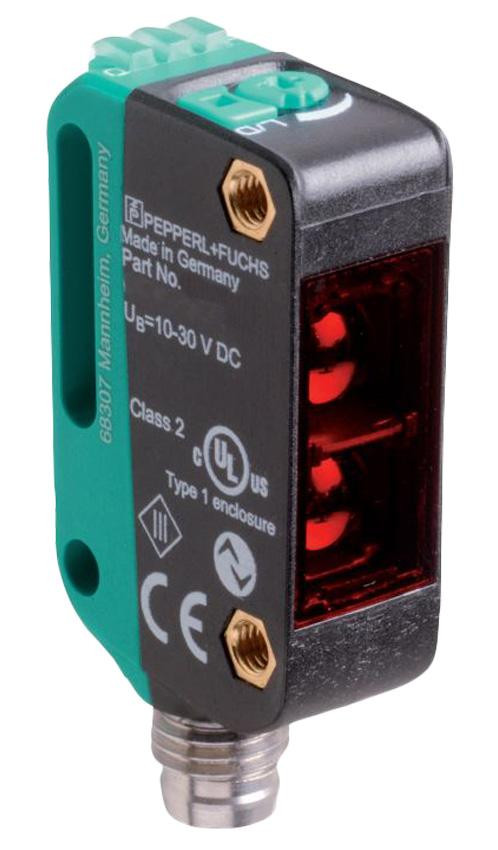

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.

  • Both R10x and R20x offer IO-Link, DuraBeam and MPT
  • R10x - small housing design
  • R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility

DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!

DuraBeam

Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).

This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.

DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.

MPT (Multi Pixel Technology)

MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.



Features Include:

  • Detection range: 2 - 1000 mm
  • Detection range min.: 20 - 50 mm
  • Adjustment range: 50 - 1000 mm
  • Reference target: standard white, 100 mm x 100 mm
  • Light source: LED
  • Light type modulated infrared light 850 nm
  • LED risk group labelling exempt group
  • Diameter of the light spot approx. 100 mm at a distance of 1000 mm
  • Opening angle: 3.7°
  • Operating voltage: 10 - 30 V DC
  • Ripple max.: 10 %
  • No-load supply current < 25 mA at 24 V supply voltage
  • Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link
  • Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected
  • Switching voltage max.: 30 V DC
  • Switching current max.: 100 mA , resistive load

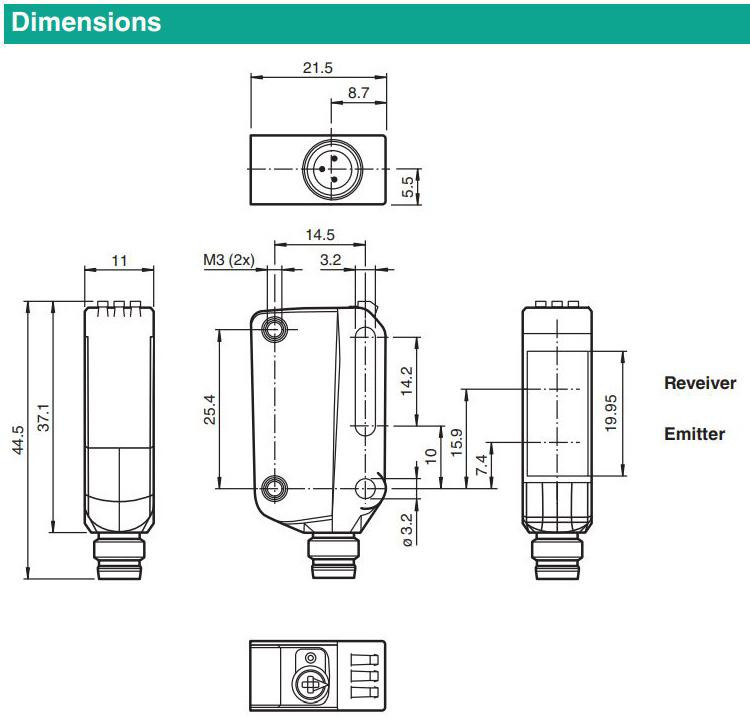

  • Housing width: 11 mm
  • Housing height: 37.1 mm
  • Housing depth: 21.5 mm
  • Degree of protection: IP67 / IP69 / IP69K
  • Connection: M8 x 1 connector, 3-pin
  • Material: Housing PC (Polycarbonate), Optical face PMMA
