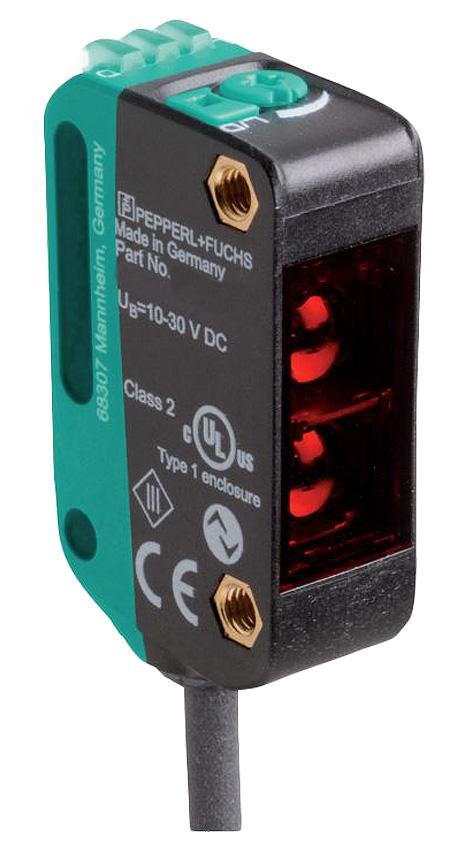

Photoelectric DuraBeam Laser Retroreflective Sensor, 10-30VDC, 0-12m Detection Range, IO Link, 0.30 Cable with M8 3-Pin Connector, 37.1H x 11W x 21.5Dmm, IP67/69/69K, Returns of This Item Must Be Approved by Manufacturer
Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Features Include:
Effective detection range: 0 - 12 m
Reflector distance: 0.02 - 12 m
Threshold detection range: 15 m
Reference target: H50 reflector
Light source: laser diode
Light type: modulated visible red light
Laser class: 1
Wave length: 680 nm
Beam divergence: > 5 mrad d63 < 2 mm in the range of 250 mm ... 750 mm
Diameter of the light spot: approx. 30 mm at a distance of 12 m
Opening angle: 0.3°
Operating voltage: 10 - 30 V DC
Ripple max.: 10 %
No-load supply current < 20 mA at 24 V supply voltage
Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage max.: 30 V DC
Switching current max.: 100 mA , resistive load

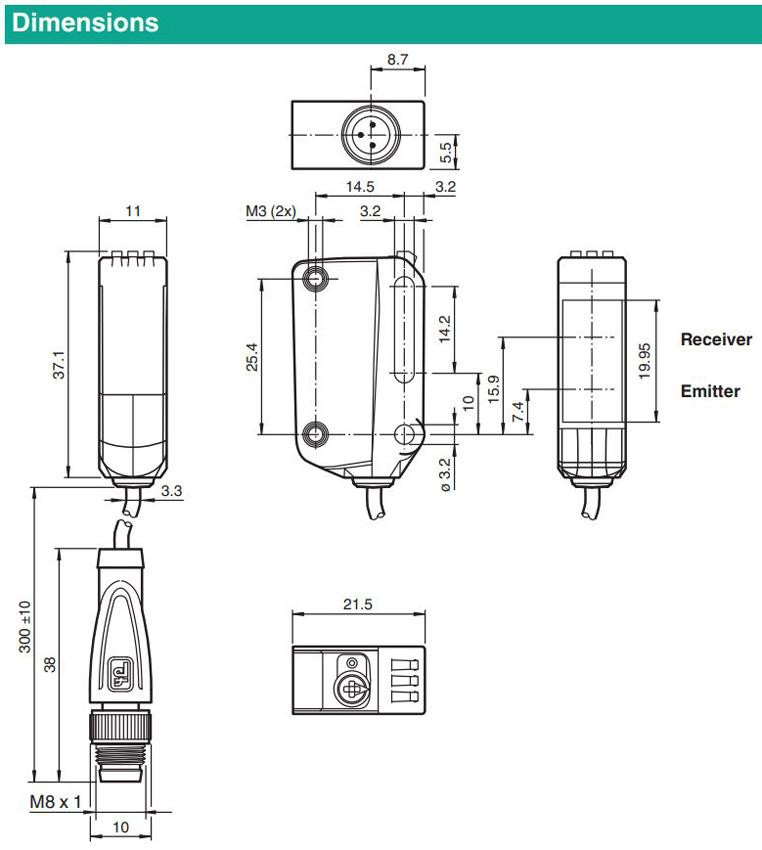

Housing width: 11 mm
Housing height: 37.1 mm
Housing depth: 21.5 mm
Degree of protection: IP67 / IP69 / IP69K
Connection: 300 mm fixed cable with M8 x 1, 3-pin connector
Material: Housing PC (Polycarbonate), Optical face PMMA
