Pepperl+Fuchs

267075-0128

Name: 267075-0128
Brand: Pepperl+Fuchs
SKU: 267075-0128
Price: 93.58 USD
Availability: InStock

Alt: OBD1000-R101-2EP-IO-V31

$93.58

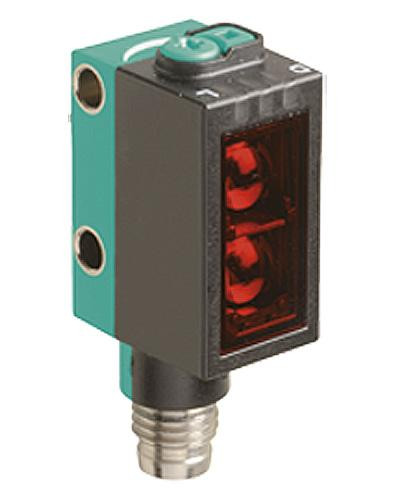

Diffuse Mode Sensor, Returns of This Item Must Be Approved by Manufacturer

SKU:: 267075-0128
Weight:: 0.10 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.

Both R10x and R20x offer IO-Link, DuraBeam and MPT
R10x - small housing design
R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility

DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!

DuraBeam

Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).

This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.

DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.

MPT (Multi Pixel Technology)

MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.

Features Include:

Detection range: 2 - 1000 mm
Detection range min.: 20 - 50 mm
Adjustment range: 50 - 1000 mm
Reference target: standard white, 100 mm x 100 mm
Light source: LED
Light type: modulated visible red light
LED risk group labelling: exempt group
Diameter of the light spot: approx. 65 mm at a distance of 1000 mm
Opening angle: 3.7°
Operating voltage: 10 - 30 V DC
Ripple: max. 10 %
No-load supply current: < 25 mA at 24 V supply voltage
Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q - Pin2: NPN normally closed / dark-on, PNP normally open / light-on
Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage: max. 30 V DC
Switching current: max. 100 mA, resistive load
Housing width: 13.9 mm
Housing height: 41.4 mm
Housing depth: 18.3 mm
Degree of protection: IP67 / IP69 / IP69K
Connection: M8 x 1 connector, 4-pin
Material: Housing PC (Polycarbonate), Optical face PMMA

Technical Information:
