Pepperl+Fuchs
304074
Required for PC sensor Config. via PACTware.Interface includes powersupply and USB cable.
$422.62
267075-0088
Alt: OBT300-R100-2EP-IO-0.3M-V1-L
$203.26
Photoelectric, DC, Background Suppression, Laser, 7 … 300 mm, M12 Quick Disconnect with 300mm Cable
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs R10x and R20x series offer standard housings and maximum performance in a space-saving housing.
- Both R10x and R20x offer IO-Link, DuraBeam and MPT
- R10x - small housing design
- R20x - medium housing design, also offers extended detection and sensing ranges as well as swiveling plug for more flexibility
DuraBeam laser technology and Multi Pixel Technology (MPT) offer long life, sharp light spot and higher temperature ranges!
DuraBeam
Eye-safe DuraBeam combines the advantages of an LED emitter (long service life and extended temperature ranges) with the strengths of laser diodes (long detection and sensing ranges).
This makes both the R10x and R20x series more energy efficient without compromising performance... even in extreme operating temperatures.
DuraBeam also has a special beam profile which casts a sharp, circular light spot on an object. This makes them ideal for extremely precise detection and distance measurement of small objects.
MPT (Multi Pixel Technology)
MPT uses the advantage of geometric triangulation for distance measurement which gives you highly precise, reliable measurement even at a close range. R10x and R20x sensors can precisely measure the position of an object and clearly distinguish it from the background.
Series Features Include:
- Detection range: 7 - 300 mm
- Detection range min.: 7 - 25 mm
- Detection range max.: 7 - 300 mm
- Adjustment range: 25 - 300 mm
- Reference target: standard white, 100 mm x 100 mm
- Light source: laser diode
- Light type: modulated visible red light
- Wave length: 680 nm
- Beam divergence: > 5 mrad d63 < 1 mm in the range of 150 mm - 250 mm
- Black/White difference (6 %/90 %): < 5 % at 150 mm
- Diameter of the light spot: approx. 1 mm at a distance of 200 mm
- Angle of divergence: approx. 0.3 °
- Operating voltage: 10 - 30 V DC
- Ripple: max. 10 %
- No-load supply current: < 20 mA at 24 V supply voltage
- 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected
- Switching voltage: max. 30 V DC
- Switching current: max. 100 mA , resistive load
- Usage category: DC-12 and DC-13
- Voltage drop: ≤ 1.5 V DC
- Switching frequency: 1650 Hz
- Housing width: 11 mm
- Housing height: 37.1 mm
- Housing depth: 21.5 mm
- Degree of protection: IP67 / IP69 / IP69K
- Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
Need More Information?
Learn More About Pepperl+Fuchs Here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pepperl+Fuchs
273880
Bracket, Elevated Profile, Right Angle Mounting, For F77 & F77S Sensors, Returns of This Item Must Be Approved by Manufacturer
$13.08
Pepperl+Fuchs
273881
Sensor Accessory, Mounting BracketRight Angled, Use with R100 Series, Returns of This Item Must Be Approved by Manufacturer
$13.08
$14.09
Pepperl+Fuchs
273883
Bracket, Low Profile, Right Angle Mounting, For F77 & F77S Sensors, Returns of This Item Must Be Approved by Manufacturer
$13.08
Pepperl+Fuchs
109434

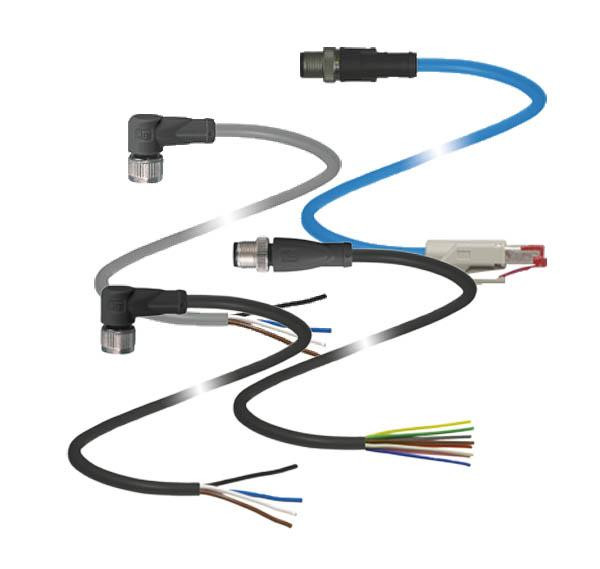

Female Cordset, 2m Grey PUR Cable, Single-Ended M12 Straight A-Coded 4-Pin, Socket with Screw Connection and Cable End Connectors, 250VAC/DC Maximum Operating Voltage, Halogen-Free, IP68/69
