262-320-70

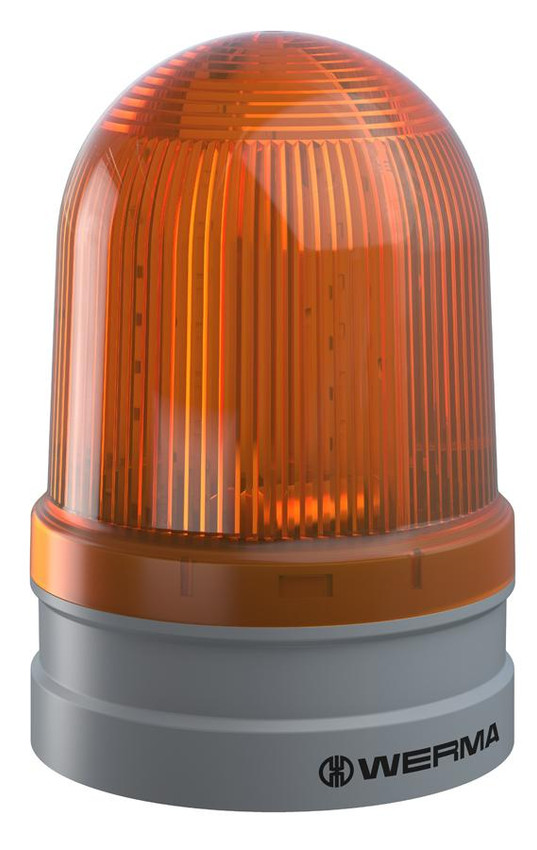

The EvoSIGNAL MAXI is a 120mm beacon that is 170mm tall and ideal for distances over 20 meters.

All EvoSIGNAL products are IP66/NEMA 4X and suitable for indoor/outdoor applications. Please note that a mounting adpater is required, please see the accessories tab.

The EvoSIGNAL MAXI:

• Available in optical (262) only
• 12/24V or 115/230V versions
• Choose from steady/flashing (TwinLIGHT), flashing/strobe model (TwinFLASH) or rotating
• Required mounting adapters include base mount, pole mount or bracket mount
• Ideal for indoor or outdoor applications that need a flexible, long-range solution!
• This series will replace all 50 part numbers from the 280 series

Werma's EvoSIGNAL streamlines their beacon offering with 62mm (MINI), 85mm (MIDI) and 120mm (MAXI) diamters available in a range of optical, audible and optical audible options.

• TwinLIGHT gives you the option of a continuous/steady light or flashing light
• TwinFLASH gives you the option of a flashing light or strobe light
• TriCOLOUR is green/red/yellow – you can trigger 3 color via only two outputs from the machine control output

Features Include:

• Operating Voltage: 12V-24V AC/DC
• Operating Voltage Type: 50Hz +/- 10%
• Rated Operational Voltage: 24 V DC
• Rated Operational Current: 760 mA
• Rated Inrush Current: <1700 mA
• Materials: PC, PC/ABS
• Connection: Push-In Terminal
• Diameter: 120 mm

Need More Information?

• Werma EvoSIGNAL 262-320-70 Datasheet
• Werma EvoSIGNAL Beacon Flyer
• Werma EvoSIGNAL Beacon Brochure

Want to learn more about the EvoSignal Series? Read all about it below:

• Introducing Werma’s EvoSIGNAL Signaling Solution
