$8.66
261-320-70
Alt: 261.320.70, 26132070, This is the Recommended Replacement for 835-352-55
$132.04
Beacon, Midi Ø85mm, Flashing Light + Strobe, Yellow, 12-24VAC/DC, Requires Mounting Adapter, IP66
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description

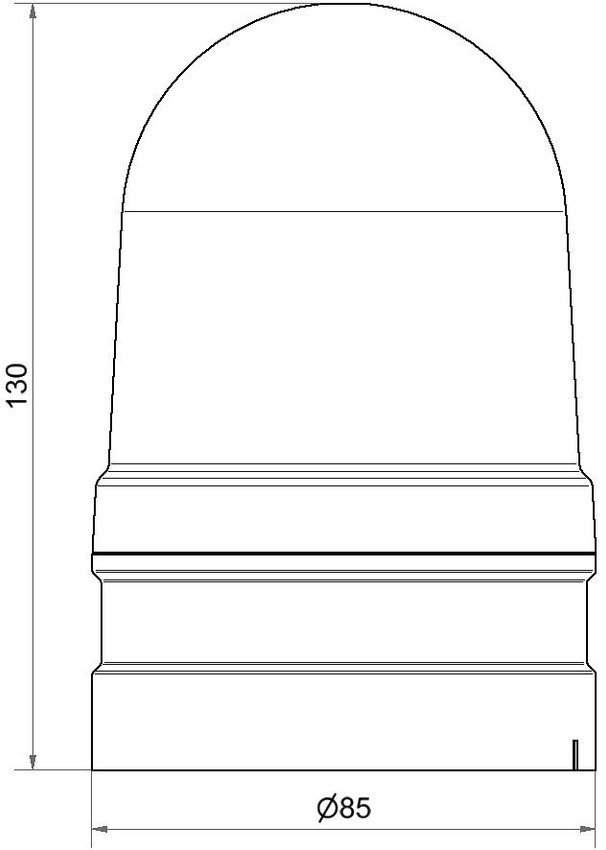

The EvoSIGNAL MIDI is an 85mm beacon that is 130mm tall and ideal for distances over 20 meters.
All EvoSIGNAL products are IP66/NEMA 4X and suitable for indoor/outdoor applications. Please note that a mounting adpater is required, please see the accessories tab.
The EvoSIGNAL MIDI:
- Available in optical (261), optical-audible (461) or audible (161)
- 12/24V or 115/230V versions
- Tricolor version available in 12/24V (261-430-70) or 115/230V (261-430-60)
- Choose from steady/flashing (TwinLIGHT), flashing/strobe model (TwinFLASH) or rotating
- Required mounting adapters include base mount, pole mount or bracket mount
- Ideal for indoor or outdoor applications that need a flexible, medium range solution!
- This series will replace all 231 part numbers from the following series:
- 133, 134, 420/422, 430/432, 431/433, 570, 574, 575, 585, 826, 828,829
Werma's EvoSIGNAL streamlines their beacon offering with 62mm (MINI), 85mm (MIDI) and 120mm (MAXI) diamters available in a range of optical, audible and optical audible options.
- TwinLIGHT gives you the option of a continuous/steady light or flashing light
- TwinFLASH gives you the option of a flashing light or strobe light
- TriCOLOUR is green/red/yellow – you can trigger 3 color via only two outputs from the machine control output
Specifications
Alternate Part Number
261.320.70, 26132070, This is the Recommended Replacement for 835-352-55
Beacon Type
Flashing Light, Strobe Light
Color
Yellow
Diameter
85mm
Light Tower Mounting
Terminal Block
All - Specific Ratings
IP66
Series
EvoSIGNAL Midi Series
All - Voltage
12-24VDC
Warranty
3 Years
Weight
1
Features Include:
- Operating Voltage: 12V-24V AC/DC
- Operating Voltage Type: 50Hz +/- 10%
- Rated Operational Voltage: 12 V DC
- Rated Operational Current: 150 mA
- Rated Inrush Current: 1 A
- Materials: PC, PC/ABS
- Connection: Push-In Terminal
- Diameter: 85 mm
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Werma
261-700-02
Base Mount with Cable Gland for EvoSIGNAL Midi Ø85mm, Grey, EvoSIGNAL MIDI Accessory, IP66
$16.61
$14.41
Werma
261-700-05
Pole/Tube Mount Adapter for EvoSIGNAL Midi Ø85mm, Grey, EvoSIGNAL MIDI Accessory, IP66
$18.41
Werma
261-700-06
Bracket Mount with Cable Gland for EvoSIGNAL Midi Ø85, Grey, EvoSIGNAL MIDI Accessory, IP66
$13.98
Werma
261-700-07
Bracket Mount Adapter, for EvoSIGNAL Midi Ø85mm, Grey, EvoSIGNAL MIDI Accessory, IP66
$9.98
