261-210-70

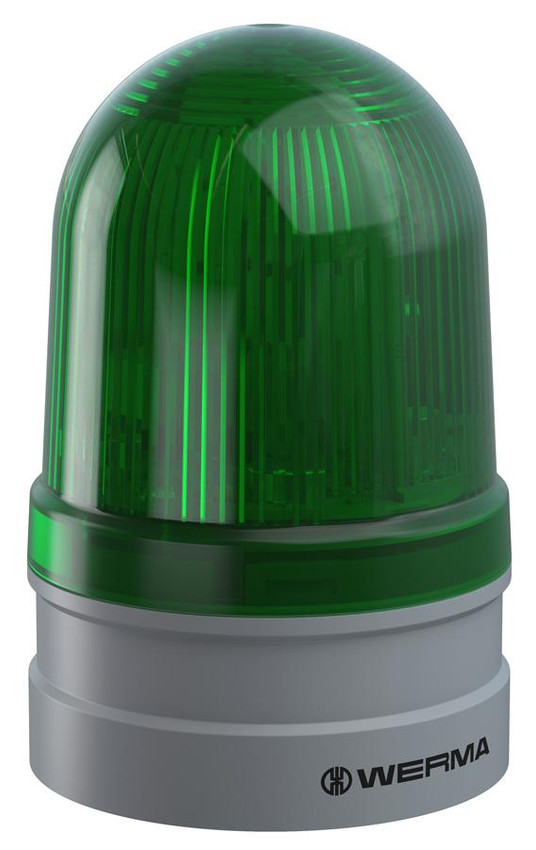

The EvoSIGNAL MIDI is an 85mm beacon that is 130mm tall and ideal for distances over 20 meters.

All EvoSIGNAL products are IP66/NEMA 4X and suitable for indoor/outdoor applications. Please note that a mounting adpater is required, please see the accessories tab.

The EvoSIGNAL MIDI:

• Available in optical (261), optical-audible (461) or audible (161)
• 12/24V or 115/230V versions
• Tricolor version available in 12/24V (261-430-70) or 115/230V (261-430-60)
• Choose from steady/flashing (TwinLIGHT), flashing/strobe model (TwinFLASH) or rotating
• Required mounting adapters include base mount, pole mount or bracket mount
• Ideal for indoor or outdoor applications that need a flexible, medium range solution!
• This series will replace all 231 part numbers from the following series:
  • 133, 134, 420/422, 430/432, 431/433, 570, 574, 575, 585, 826, 828,829

Werma's EvoSIGNAL streamlines their beacon offering with 62mm (MINI), 85mm (MIDI) and 120mm (MAXI) diamters available in a range of optical, audible and optical audible options.

• TwinLIGHT gives you the option of a continuous/steady light or flashing light
• TwinFLASH gives you the option of a flashing light or strobe light
• TriCOLOUR is green/red/yellow – you can trigger 3 color via only two outputs from the machine control output

Features Include:

• Operating Voltage: 12V-24V AC/DC
• Operating Voltage Type: 50Hz +/- 10%
• Rated Operational Voltage: 12 V DC
• Rated Operational Current: 175 mA
• Rated Inrush Current: 1 A
• Materials: PC, PC/ABS
• Connection: Push-In Terminal
• Diameter: 85 mm
