Dart Controls
253G-200E-4X-7

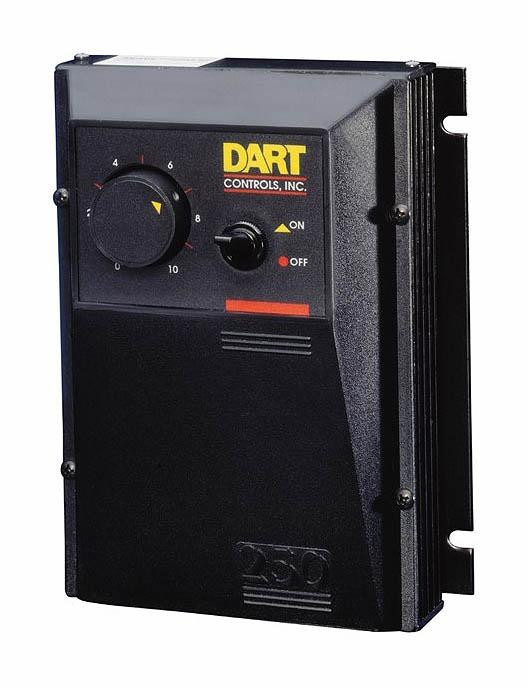

DC Speed Control, 1/8 thru 2.0hp, NEMA 4X, Dual Voltage Control wiith 4-20mA Isolated Signal Follower with Auto-Manual Function, 253 Series
$536.00
253G-200E-4X
Alt: 253G Series
$406.40
DC Speed Control, 1/8 thru 2.0hp, NEMA 4X, Dual Voltage Control, 253 Series
- Weight:
- 2.25 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Our Dart Controls 253G series offers flexibility, reliability, and value.
This general purpose, economical control is rated to 2 horsepower, provides the ultimate in standard features and versatility including:
- Dual voltage (120/240VAC)
- Adjustable H.P. settings
- Packaged power bridge
- Barrier terminal strip
- Fully rated - no auxiliary heatsink required
- Chassis (253G-200C model) or NEMA 4/12 enclosure (253G-200E model).
Input voltage: 12/240 VAC
Output voltage: 0-90/180 VDC
Horsepower range:
- 1/8 to 1hp (90 volt)
- 1/3 to 2 hp (180 volt)
Designed and manufactured right in Indiana!
Specifications
Analog/Digital
Analog
Housing/Enclosure
NEMA 4/4X (IP66)
Series
253G Series
Speed Controller Type
DC Speed Controls, Analog
Warranty
1 Year
Alternate Part Number
253G Series
Weight
2.25
