Dart Controls
253G-200E-4X

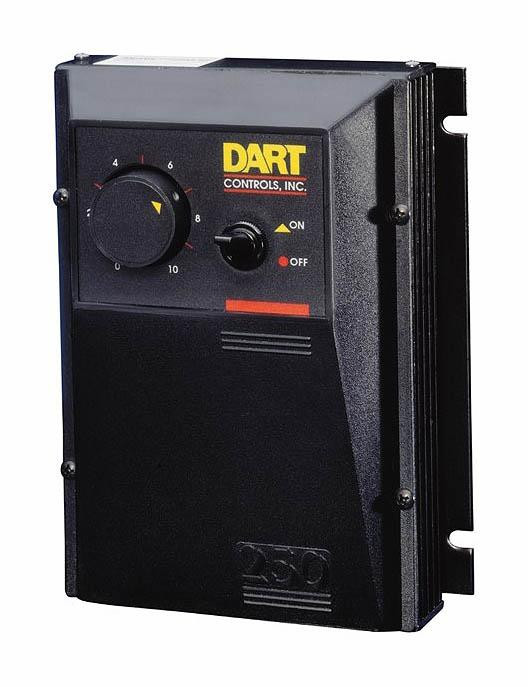

DC Speed Control, 1/8 thru 2.0hp, NEMA 4X, Dual Voltage Control, 253 Series
$406.40
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
253G-200E-4X-7
$536.00
DC Speed Control, 1/8 thru 2.0hp, NEMA 4X, Dual Voltage Control wiith 4-20mA Isolated Signal Follower with Auto-Manual Function, 253 Series
- Weight:
- 2.20 LBS
- Minimum Purchase:
- 1 unit
Description
Our Dart Controls 253G series offers flexibility, reliability, and value.
This general purpose, economical control is rated to 2 horsepower, provides the ultimate in standard features and versatility including:
- Dual voltage (120/240VAC)
- Adjustable H.P. settings
- Packaged power bridge
- Barrier terminal strip
- Fully rated - no auxiliary heatsink required
- Chassis (253G-200C model) or NEMA 4/12 enclosure (253G-200E model).
Input voltage: 12/240 VAC
Output voltage: 0-90/180 VDC
Horsepower range:
- 1/8 to 1hp (90 volt)
- 1/3 to 2 hp (180 volt)
Designed and manufactured right in Indiana!
Specifications
Analog/Digital
Analog
Housing/Enclosure
NEMA 4/4X (IP66)
Series
253G Series
Speed Controller Type
DC Speed Controls, Analog
Warranty
1 Year
Weight
2.2
Height
4"
Length/Depth
7.75"
Width
6.5"
