241-440-55

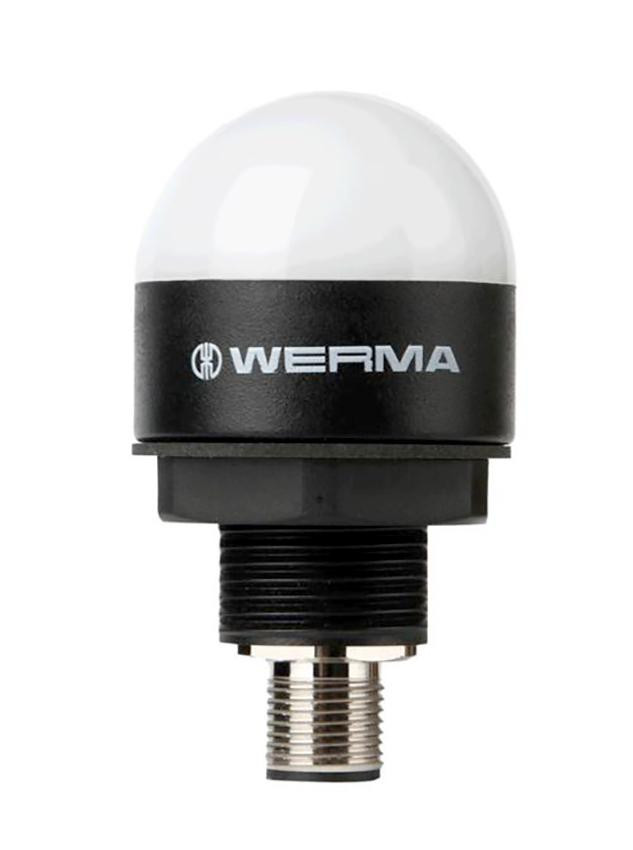

Werma introduces their MC35 beacon that has a diameter of 35mm and stands out just 33mm from the surface when installed!

This compact solution is available in up to seven colors in one light; red, yellow, green, white, blue, violet and turquoise. It is also available in a tricolor version with red, yellow and green.

Control is plug and play with an M12 connector, you can signal several states with one beacon!

• Optional buzzer
• M22 mounting - can easily be instlled in single-hole mounting
• UL approval and IP69K

Application ideas:

Thanks to its seven colors, the LED installation beacon can be used in a variety of ways! For example, it signals malfunctions or statuses on the control panel of the machine, in the machine housing or on control cabinets.

Thanks to its compact dimensions, the light is also ideally suited for mobile machines as well as automation and large systems with many process steps.

Thanks to its high IP 69k protection rating, it is also frequently used in the food processing, pharmaceutical and petrochemical industries, where all equipment must meet washdown requirements and is regularly exposed to high-pressure water jets.

Features Include:

• Rated Operating Voltage: 24VDC +/- 10%
• Rated Operational Current: 45 mA
• Rated Inrush Current: 165mA
• Light source: LED
• Light Color: Green, Red, Yellow
• Optical Signal Image: Permanent
• Volume (max) at 1m Distance: 80
• Acoustic Signal Image: Continuous tone
• Height: 64 mm
• Diameter: 35 mm
• Materials: PC
• Dome Color: Clear
• Housing Color: Black
• Protection Category: IP69K
• Connection: M12 plug 5-pole
• Tension Relief: Pull-out protection
• Type of Fixing: Built-in mounting

Technical Information:

• Werma 241.440.55 - MC35 Series Beacon Technical Data
• Werma MC35 Series Beacon Operating Instructions
