241-320-50
Werma

241-320-50

Alt: 241.320.50, 24132050, 7 Color

$89.70

MC35 UL Beacon, Ø35 x 64mm, 10-30VDC, Continuous 7 Color, Black Body, Clear Dome Lens, M12 5-Pole Plug, Built-in Mounting, -20°C to +50°C Working Temperature, IP69K, MC35 UL Series

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

Werma introduces their MC35 beacon that has a diameter of 35mm and stands out just 33mm from the surface when installed!

This compact solution is available in up to seven colors in one light; red, yellow, green, white, blue, violet and turquoise. It is also available in a tricolor version with red, yellow and green.

Control is plug and play with an M12 connector, you can signal several states with one beacon!

  • Optional buzzer
  • M22 mounting - can easily be instlled in single-hole mounting
  • UL approval and IP69K

Application ideas:

Thanks to its seven colors, the LED installation beacon can be used in a variety of ways! For example, it signals malfunctions or statuses on the control panel of the machine, in the machine housing or on control cabinets.

Thanks to its compact dimensions, the light is also ideally suited for mobile machines as well as automation and large systems with many process steps.

Thanks to its high IP 69k protection rating, it is also frequently used in the food processing, pharmaceutical and petrochemical industries, where all equipment must meet washdown requirements and is regularly exposed to high-pressure water jets.

Specifications
Alternate Part Number 241.320.50, 24132050, 7 Color
Beacon Type Continuous Light Only
Color Multi-Color
Diameter 35 mm
Light Tower Mounting Direct/Surface Mount
All - Specific Ratings IP69K
Series MC35 Series
All - Voltage 10-30VDC
Warranty 3 Years
Weight 0.25

Features Include:

  • Rated Operating Voltage: 24VDC +/- 10%
  • Rated Operational Current: 30 mA
  • Rated Inrush Current: 850mA
  • Light source: LED
  • Light Color: MC 7 colors
  • Optical Signal Image: Permanent
  • Volume (max) at 1m Distance: 80
  • Acoustic Signal Image: Continuous tone

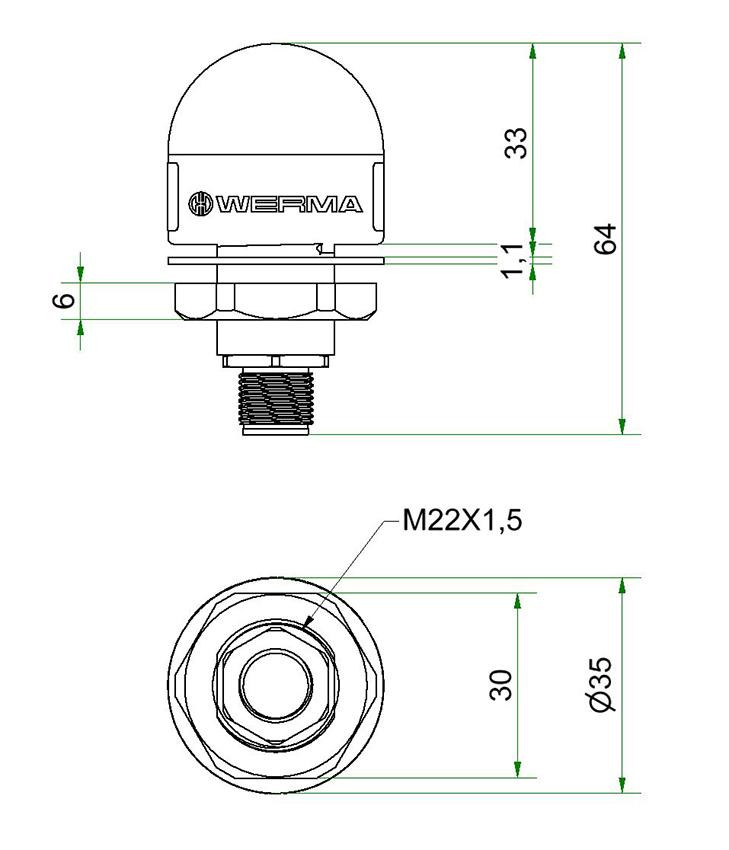

  • Height: 64 mm
  • Diameter: 35 mm
  • Materials: PC
  • Dome Color: Clear
  • Housing Color: Black
  • Protection Category: IP69K
  • Connection: M12 plug 5-pole
  • Tension Relief: Pull-out protection
  • Type of Fixing: Built-in mounting
Downloads
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Available Now!

Werma

960-693-05

Cable, 5m Black with M12 5-Pole Socket, Ø15 x 41.5 x 5,000mm (Diameter x H x L), MC35 Series

$45.40
