235962
Alt: ML100-8-W-200-RT/95/102
$121.75

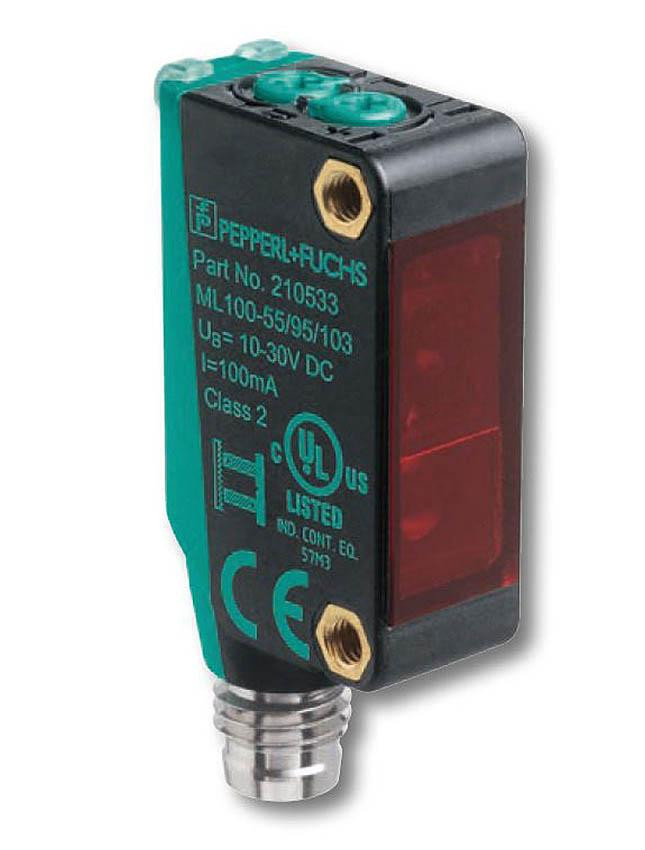

Photoelectric Sensor, Diffuse Mode with Rectangular Light Spot for Clear Object Detection, 200mm Range, Red Light, Light/Dark On, Sensitivity Adjuster, DC Version, NPN Output, M8 Plug, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Operating voltage: 10 - 30 V DC
- Detection range: 0 - 200 mm
- Adjustment range: 15 - 200 mm
- Reference target: standard white , 200 mm x 200 mm
- Light source: LED
- Light type: modulated visible red light
- Diameter of the light spot: approx. 170 mm at a distance of 200 mm
- Optical face: frontal
- Operation indicator LED green: power on
- Function indicator: LED yellow, lights up with receiver lit
- Control elements: sensitivity adjustment
- Control elements: Light-on/dark-on changeover switchSwitching type The switching type of the sensor is adjustable. The default setting is: light-on
- Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector
- Switching voltage max.: 30 V DC
- Switching current max.: 100 mA , resistive load

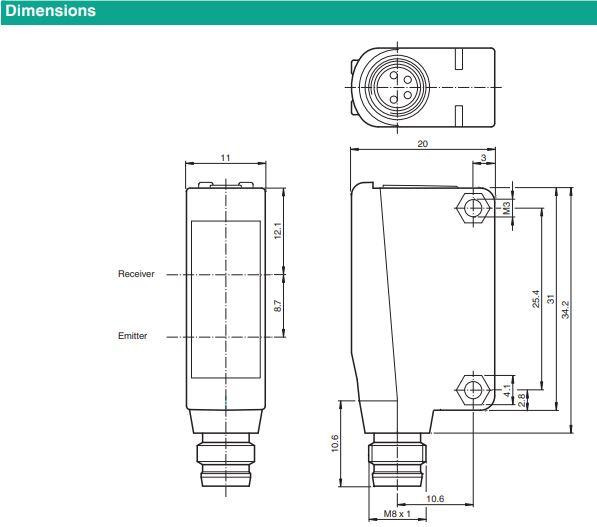

- Housing width: 11 mm
- Housing height: 31 mm
- Housing depth: 20 mm
- Degree of protection: IP67
- Connection plug: M8 x 1 , 4-pin
- Housing: PC (Polycarbonate)
- Optical face: PMMA
Technical Information:
