XW1E-BV403M-R
Alt: XA/XN/XW Series, Non-Cancellable, No Returns
$38.56

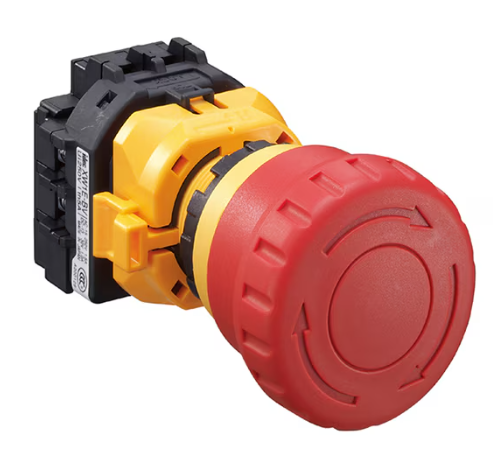

22mm Emergency Stop, 3NC, 40mm Operator, Red Button, w/Terminal Cover, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
22mm Emergency Stop, 3NC, 40mm Operator, Red Button, w/Terminal Cover
Specifications
Color
Red
Illuminated/Non-Illuminated
Non-Illuminated
Normally Open/Closed
3NC
Pushbutton Type
Push Turn/Push Pull
All - Specific Ratings
IP65
Series
XA/XN/XW Series
Size
22mm
Type of Product
Emergency Stop/E-Stop
Warranty
1 Year
Alternate Part Number
XA/XN/XW Series, Non-Cancellable, No Returns
Weight
0.5
Features Include:
- Plastic bezel, metallic padlock and flush bezel available (XN series)
- Install up to 20 padlocks (XN4E)
- ø29, ø40, ø44 or ø60mm Mushroom heads available
- IDEC’s original “safe break action” ensures that the contacts stay open when the contact block is detached from the operator.
- Safety-lock mechanism (IEC60947-5-5, 6.2)
- 2-in-1: Push-to-lock, Pull/Turn-to-Reset
- Push-ON LED model allows E-Stops to be illuminated only when latched
- Direct Opening Action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Very short panel depth (see chart on next page)
- Degree of protection IP65 (IEC60529)
- RoHS compliant (EU directive 2002/95/EC). Contains no lead, cadmium, mercury, hexavalent chromium, PBB or PBDE.
- XN4E series complies with OSHA and ISO 12100-2:2003 standards
