207168
Alt: V1-G-15M-PUR-ABG
$74.46

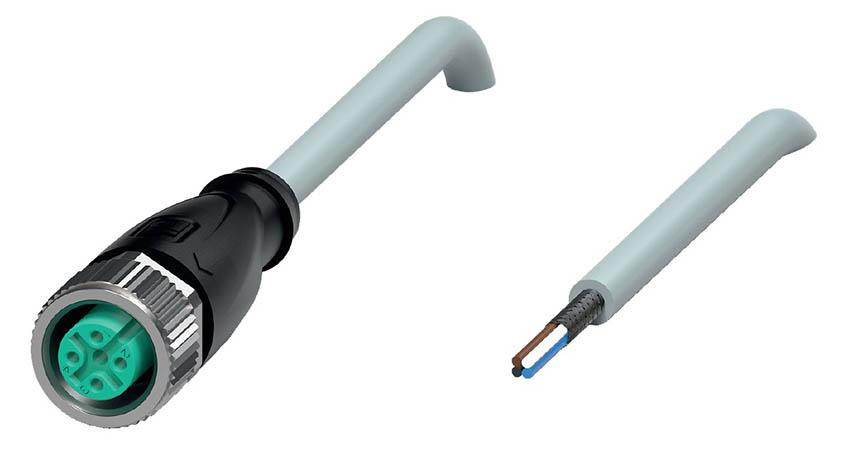

Female Cordset, 15m Grey PUR Cable, Shielded, Single-Ended M12 Straight A-Coded, 4-Pin Socket, Socket and Cable End, Operating Voltage 48VAC/60VDC, Halogen-Free, IP68/69
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Operating Voltage: max. 48 V AC / 60 V DC
- Operating Current: max. 4 A
- Plug Connection: connector M12 x 1 : IEC 61076-2-101
- Screw connection: Zinc diecast, nickel-plated
- Sheathing: PUR based on polyether
Connector 1:
- Connection: socket
- Construction type: M12
- Style: straight
- Locking: screw connection
- Number of pins: 4
- Coding: A-coded
Connector 2:
- Connection: cable end
Technical Information:
