RGC1A60A30KGU
Alt: Minimum Order 10 Pieces, Price per Piece
$84.80

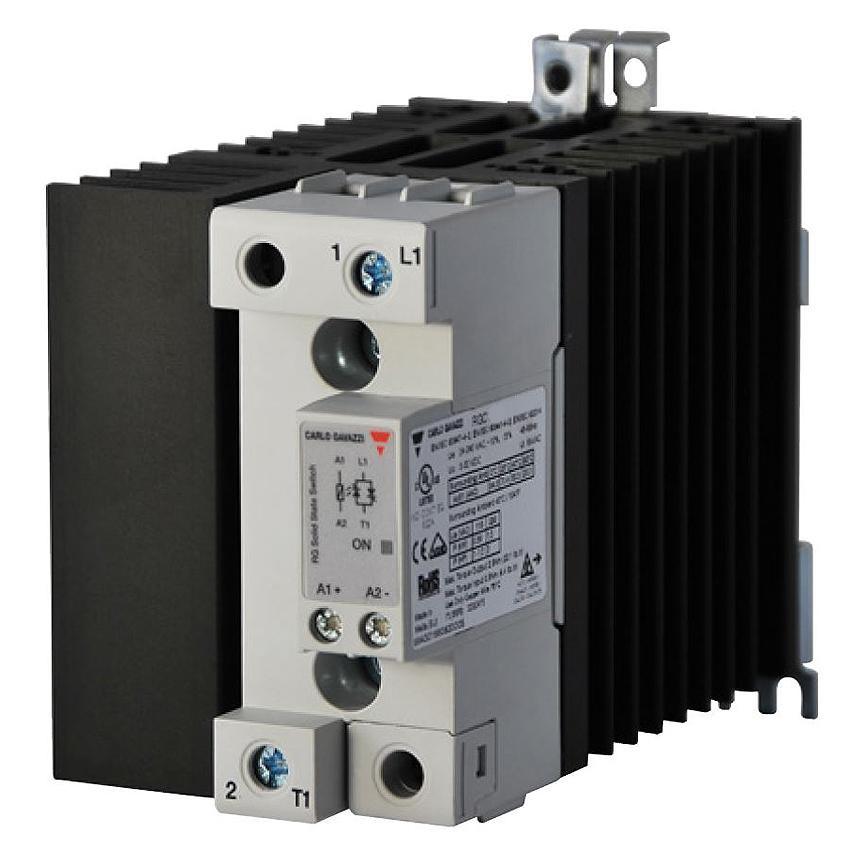

Solid State Relay, Integrated Heatsink, 1-Pole Switching, Zero Cross, 600VAC, 1200Vp, 30 Amp, 20-275VAC/24-190VDC Control Voltage, Screw Connection for Control Terminals, Box Clamp for Power Terminals, SSR Configuration
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 10 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Control Voltage: 20-275VAC, 24-190VDC
- Rated Voltage: 600V,1200Vp
- Material: PA66 or PA6 (UL94 V0), RAL7035, Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- Mounting: DIN rail (panel mount also possible)
- Touch Protection: IP20
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- Up to 18000 A²s for I²t for protection coordination with M.C.Bs
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
Technical Information:
