198084
Alt: NBN15-18GM60-US-V12
$224.39

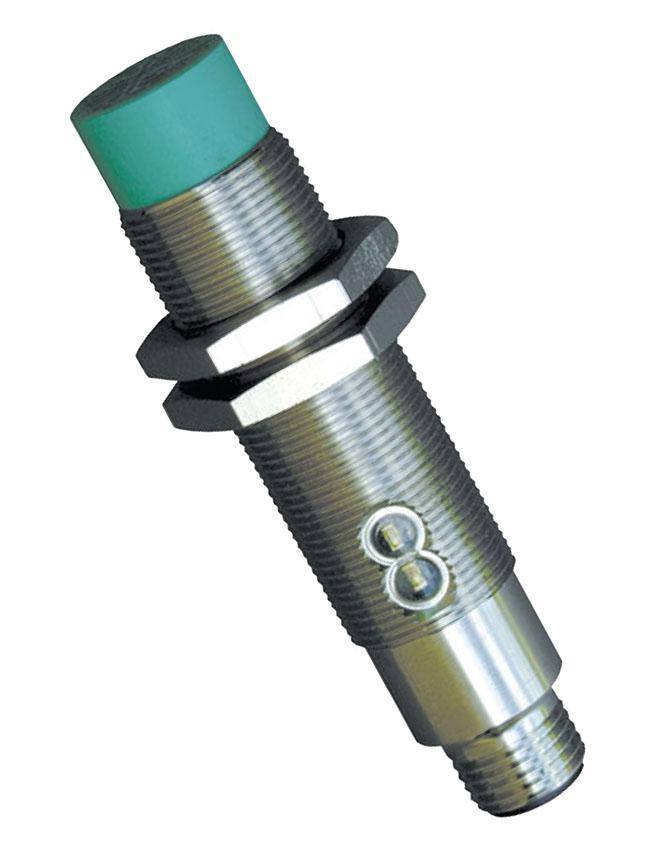

Inductive Proximity Sensor, DC
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Switching function: Normally open (NO)
- Rated operating distance: 15 mm
- Output type: 2-wire
- Installation: non-flush
- Output polarity: AC/DC
- Operating voltage: 20 - 250 V AC/20 - 300 V DC
- Operating current: 4 - 300 mA AC/DC
- Switching frequency: 0 - 30 Hz
- Connection type: Connector plug 1/2"-20 UN, 3-pin
- Housing material: brass, nickel-plated
- Sensing face: PBT
- Degree of protection: IP67
Technical Information:
