PESW-B9D45EX-R60
Weg

PESW-B9D45EX-R60

Alt: 16674782

$78.29

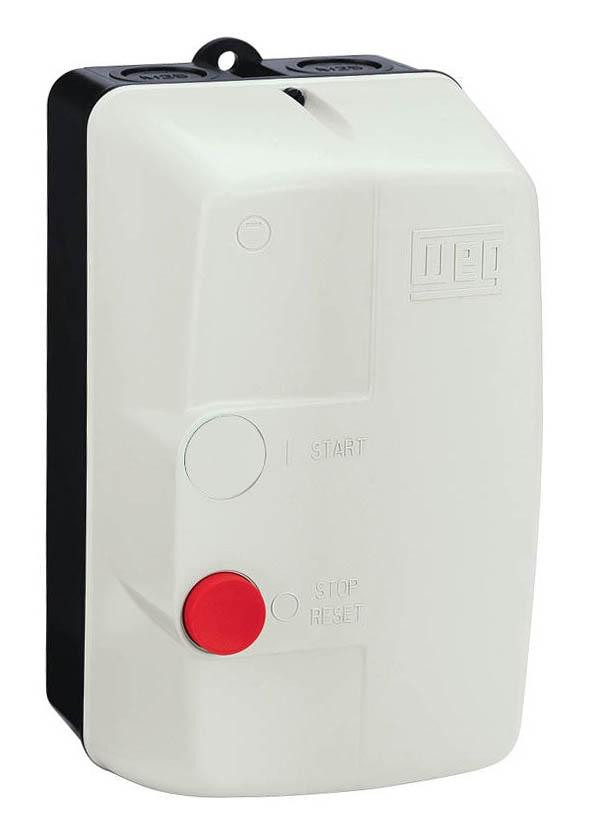

Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 2.8-4A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

Weight:
1.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Non-reversing, non-combination NEMA 4X magnetic starter that meets IEC standards and UL horsepower ratings!
Description

WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.

Magnetic starters are designed to protect and operate motors.

There are a number of starters available from WEG:

Non-combination starters:

  • ESW series is metallic, NEMA 1, across the line starter, three phase
  • ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
  • ESWX series is metallic, NEMA 7/9, explosion proof starters
  • PESW series is non-metallic, NEMA 4X, across the line starter, three phase
  • PESWS series is non-metallic, NEMA 4X, across the line starter, single phase

Combination starters:

  • ESWC series
  • ESWE series
  • ESWF series

Marshall Wolf Automation is your authorized WEG distributor!

Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.




Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Weg

PESW-B9D45EX-R61

Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 4-6.3A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$78.29

Weg

PESW-B9D45EX-R63

Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 7-10A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$78.29

Weg

PESW-B9D45EX-R58

Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 1.2-1.8A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$78.29

Weg

PESW-B9D45EX-R59

Enclosed Starter, 9 Amp (9A) CWB Contactor, 600V Coil Voltage, Reset Only, 1.8-2.8A Overload Range, Three Phase, NEMA 4X, Non-Metallic, Non-Reversing, Non-Combination Across the Line Starter, M04 Box Dimensions: 9.5 x 5.5 x 5.0" (HWD)

$78.29
Available Now!

Weg

PESW-B9D39AX-R60

Enclosed Starter, 1hp@230V / 2hp@460V / 3hp@575V, 9A, 480V Coil, Start / Stop+Reset, 4X, 2.8-4A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$104.72

Weg

PESW-B9D39EX-R60

Enclosed Starter, 1hp@230V / 2hp@460V / 3hp@575V, 9A, 480V Coil, Reset Only, 2.8-4A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$78.29

Weg

PESW-B9V24AX-R60

Enclosed Starter, 1hp@230V / 2hp@460V / 3hp@575V, 9A, 208-240V Coil, Start / Stop+Reset, 4X, 2.8-4A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$104.72

Weg

PESW-B9D15AX-R60

Enclosed Starter, 1hp@230V / 2hp@460V / 3hp@575V, 9A, 120V Coil, Start / Stop+Reset, 4X, 2.8-4A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$104.72

Weg

PESW-B9D15EX-R60

Enclosed Starter, 1hp@230V / 2hp@460V / 3hp@575V, 9A, 120V Coil, Reset Only, 2.8-4A Overload Range, 3 Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination

$78.29
