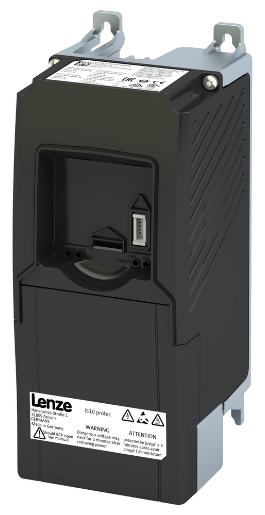

Product image is representative only, please verify specifications.
I51AP222D00001W00S
Alt: 16559449
$453.26
VFD, 2.2kW, 3.0hp, 230VAC, 1/N/PE, 3/PE, No Safety Technology, No Extension Box, WLAN Module with Standard I/O without Network, NEMA 1, IP20, i510 Series
- Weight:
- 3.30 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Overload current: Mode S1: 150 %, mode S6: 200 %

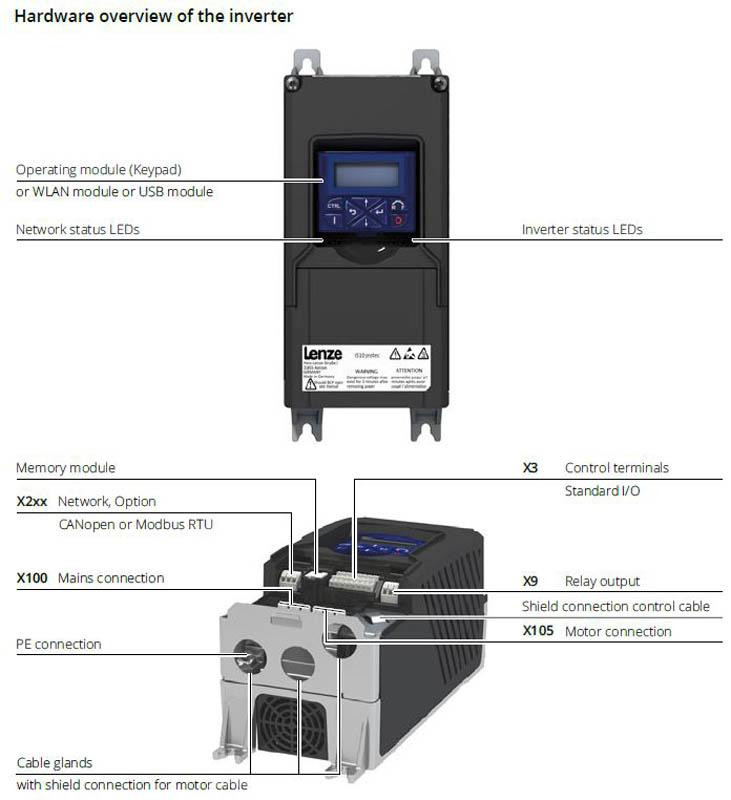

- Interfaces: Digital inputs/outputs (5/1), analog inputs/outputs (2/1), Relay, External 24 V supply, CANopen, Modbus RTU
- Approvals: CE, UL, CSA, EAC, RoHS2, IE2 in accordance with EN 50598-2
- Functions: V/f characteristic control linear/quadratic (VFC plus), Sensorless vector control (SLVC), Energy saving function (VFC-Eco), Sensorless vector control for synchronous motors, DC braking, Brake management for low-wear brake control, S-ramps for smooth acceleration and delay, Flying restart circuit, PID controller
- Ingress protection up to IP31 (NEMA 1) with protection against contact, condensation and vertically falling drops of water. This allows for use inside or outside the control cabinet.
- Sensorless synchronous motor control
- Intuitive user interface for fast setup and an easy navigation parameter structure
- EPM module for simple series commissioning and device replacement
- Optionally equipped with keypad or WLAN diagnostic module
Technical Information:
- Lenze i510 Protec Frequency Inverter Flyer
- Lenze i510 Protec Frequency Inverter Operating Instructions
- Lenze i510 Protec Frequency Inverter Commissioning Guide
- Lenze i510 Protec Mounting and Switch-On Instructions
- Lenze i500 Reference Card Inverter Operating Instructions
- Lenze i510 Protec Frequency Inverter Project Planning Guide
- Lenze MC NEMA 1 to i510/i550 Protec NEMA 1 Substitution Guide
